- ULN2003A motor driver chip
- Chip all the pins already leads for easy connection to use
- 5-12V power supply
- 4-way signal indicator
- Step angle: 5.625 x 1 / 64
- Reduction ratio: 1 / 64
- Phase: 4
- Current / Phase: 5V

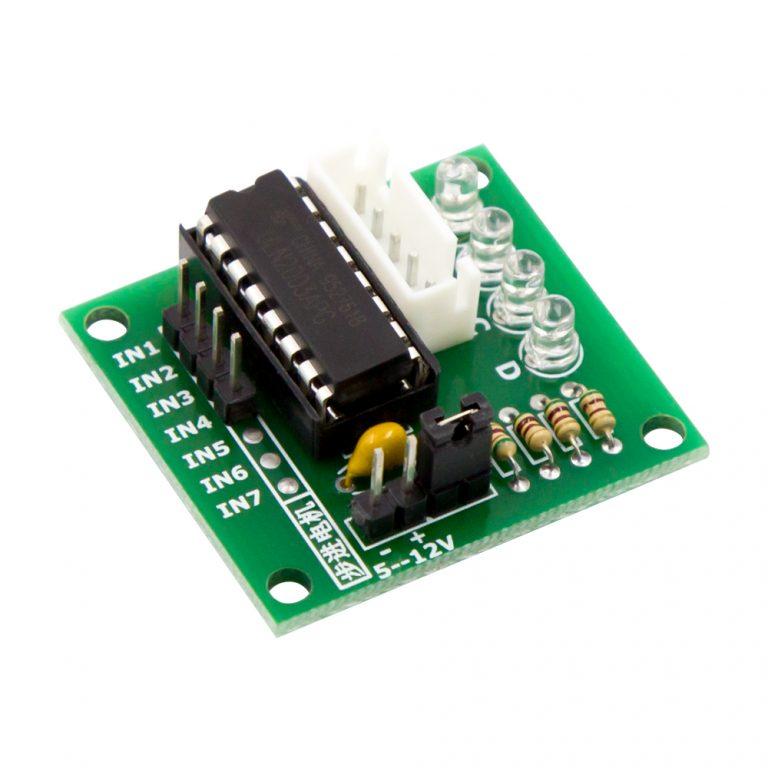

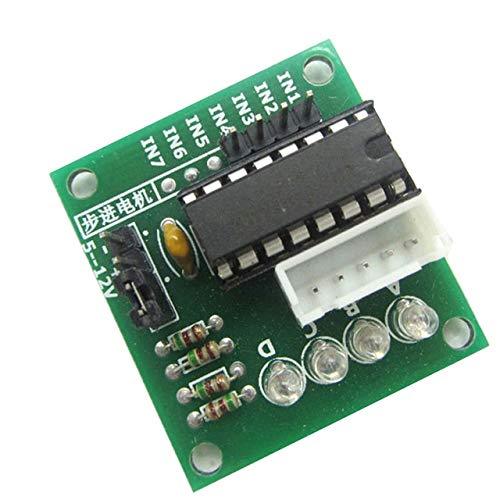

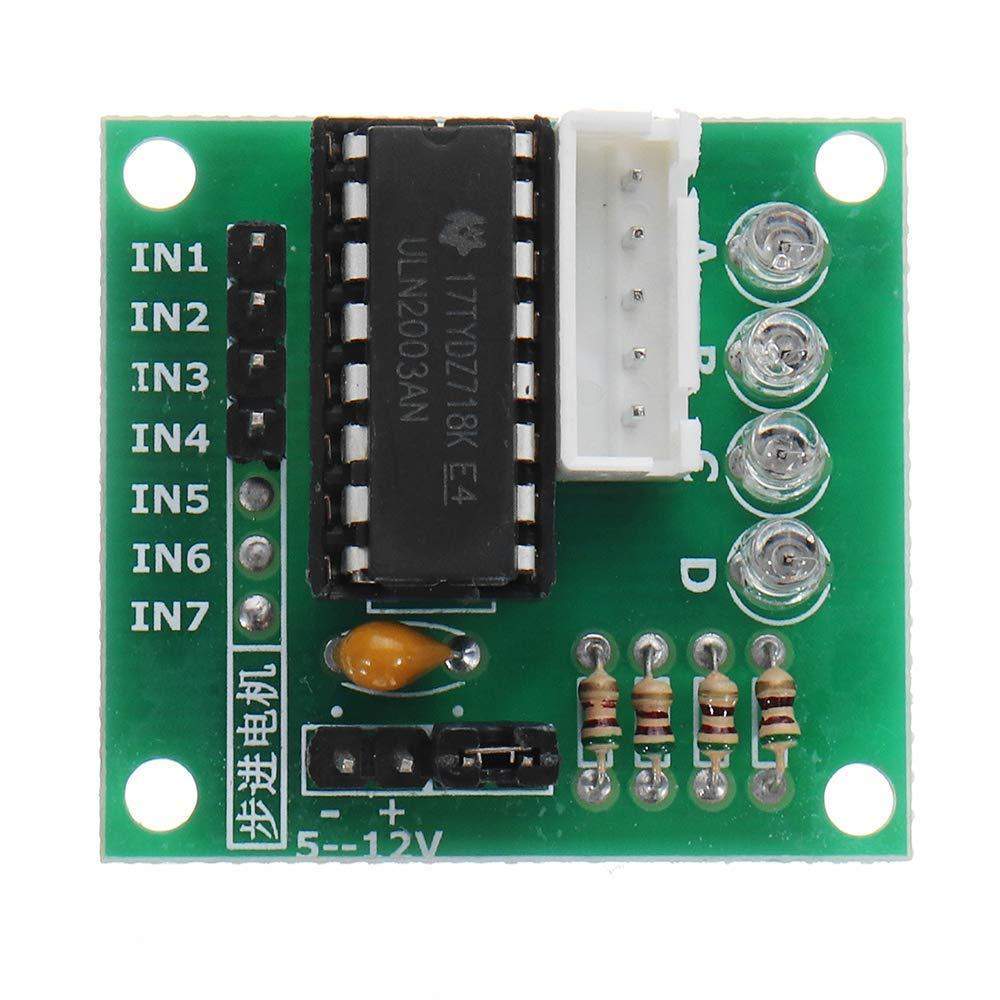

This is ULN2003 Driver Module Stepper Motor Driver Board for driving and controlling stepper motors.
ULN2003 Stepper Motor Driver Board uses the ULN2003 DARLINGTON ARRAYS to drive the 4-phase 5-wire stepper motor (5v-12v).
It’s easy to use Arduino or another development platform to drive the stepper motor by this diver board.
The 5 Line 4 Phase can be driven by ordinary ULN2003 chip can also be connected in phase 2 development board used for supporting the use of a direct plug and easy to use stepper motor used in the development board. A, B, C, D four-phase LED indicates the status of the stepper motor work.
1 x ULN2003 Stepper Motor Driver Board Module Sensor Panel for Arduino/AVR/ARM Raspberry Pi 5 Line 4 Phase
Good product, I have been using it for 3 weeks and it works pretty well. Must Buy!!!
This is a good quality module for working with a stepper motor.
The product works great, as mentioned in the description.
Country Of Origin: China
Imported and Marketed By:
Select Brands International Pvt Ltd
