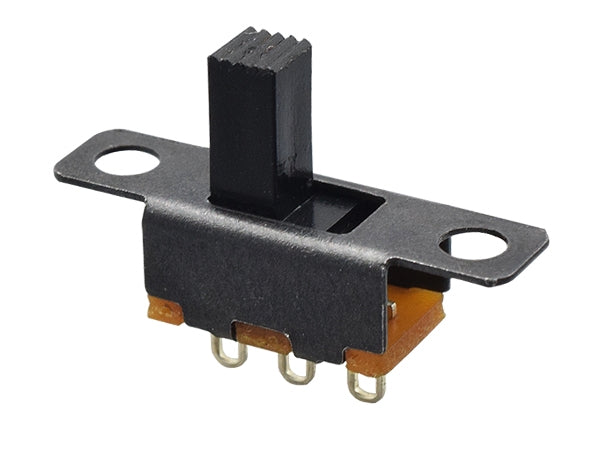

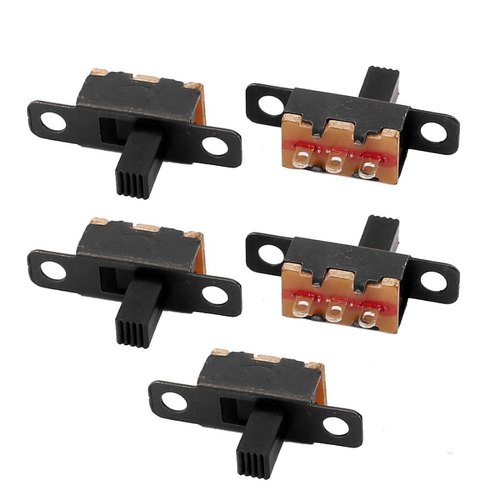

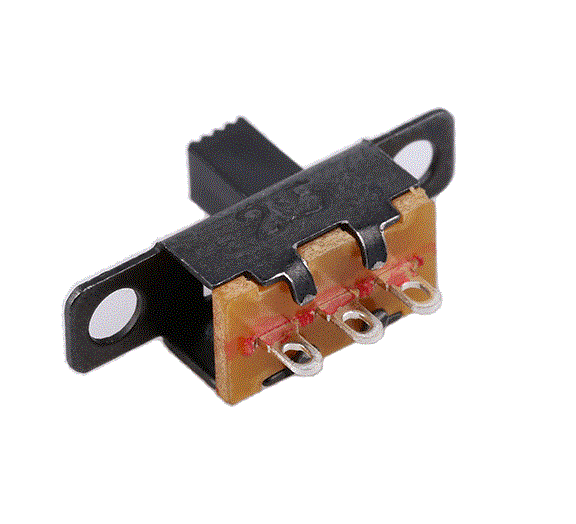

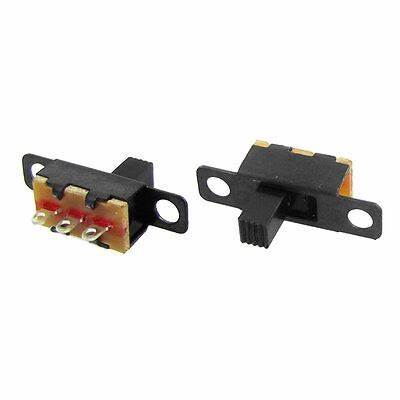

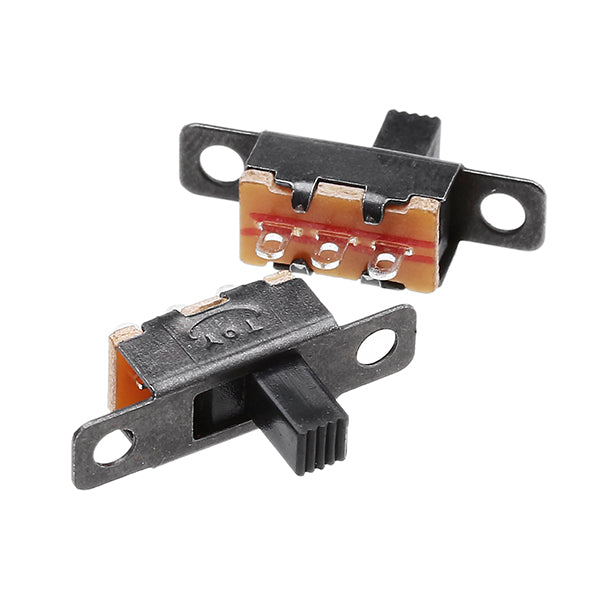

Product Name : Slide Switch
Model No.: SS12F15
Action Type : SPDT
Power : DC 50V 0.5A
Contact Resistance : 30mΩ Max
Insulation Resistance : 500mΩ Min at 500V DC
Withstand Voltage : AC 500V/1 min
Actuating Force: 2.5±0.5N
Working Temperature: -25~85°
Terminal Length : 5mm/ 0.2"
Total Size : 23 x 7 x 16.5mm/ 0.9" x 0.28" x 0.65"(L*W*H)
Knob Size : 5 x 4 x 5mm / 0.2" x 0.16" x 0.2"(L*W*H)
Usage:Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc
Note: Please allow 1-3mm error due to manual measurement. please make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
