- Operating current: 10mA
- Operating voltage: DC 4.5 ~ 30V
- Minimum resolution(V): 0.1V
- Minimum resolution(A): 0.01A
- Display color: Red and Blue (two-color display)
- Measure accuracy: 1%

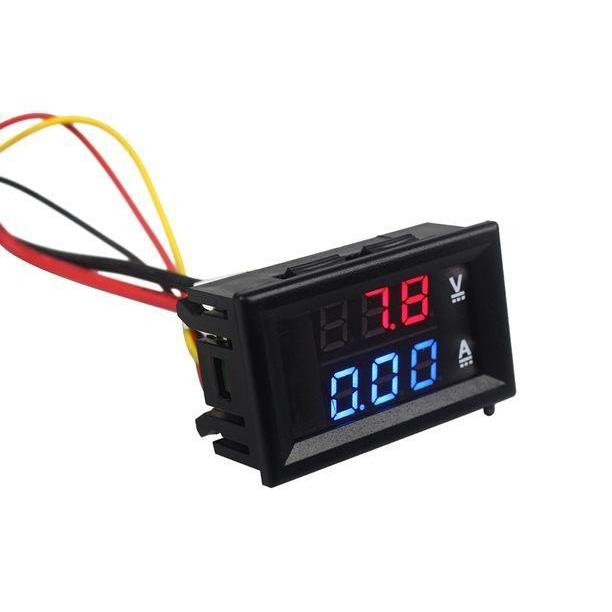

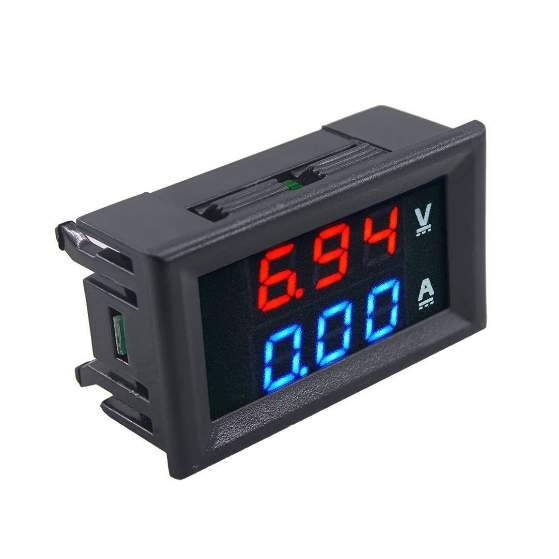

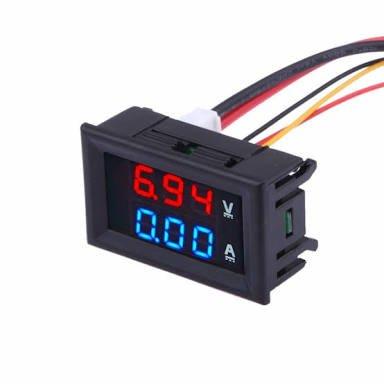

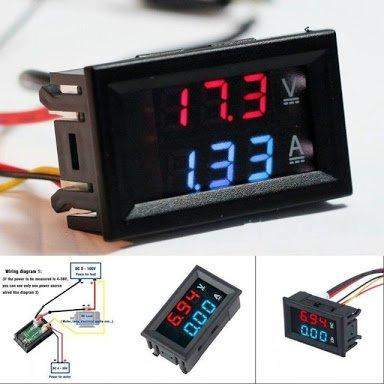

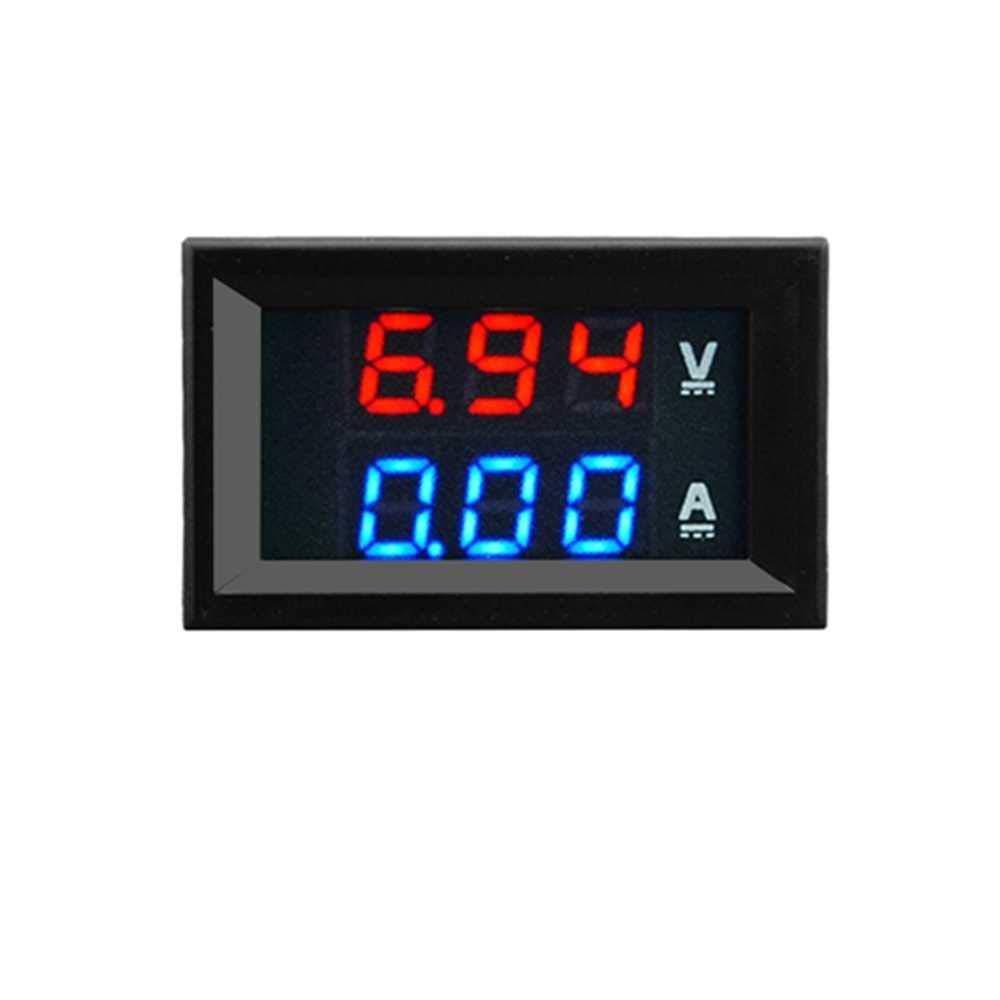

This is Red-Blue LED Digital Dual DC 100V 100A Ammeter Voltmeter. This meter will measure up to 100 VDC with a 0.1-volt resolution.

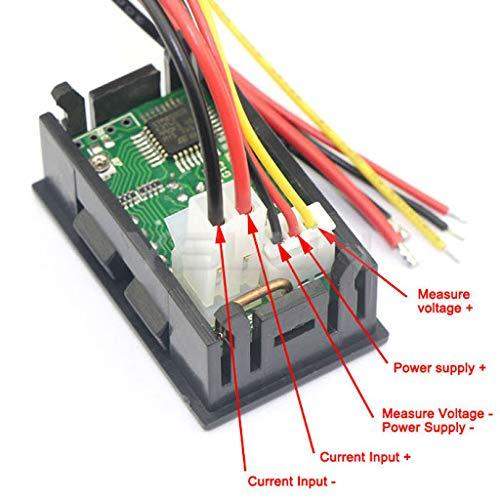

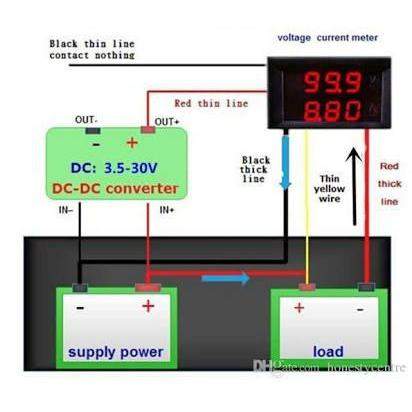

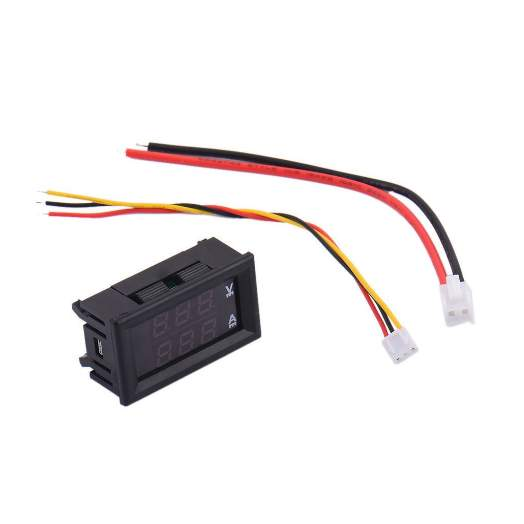

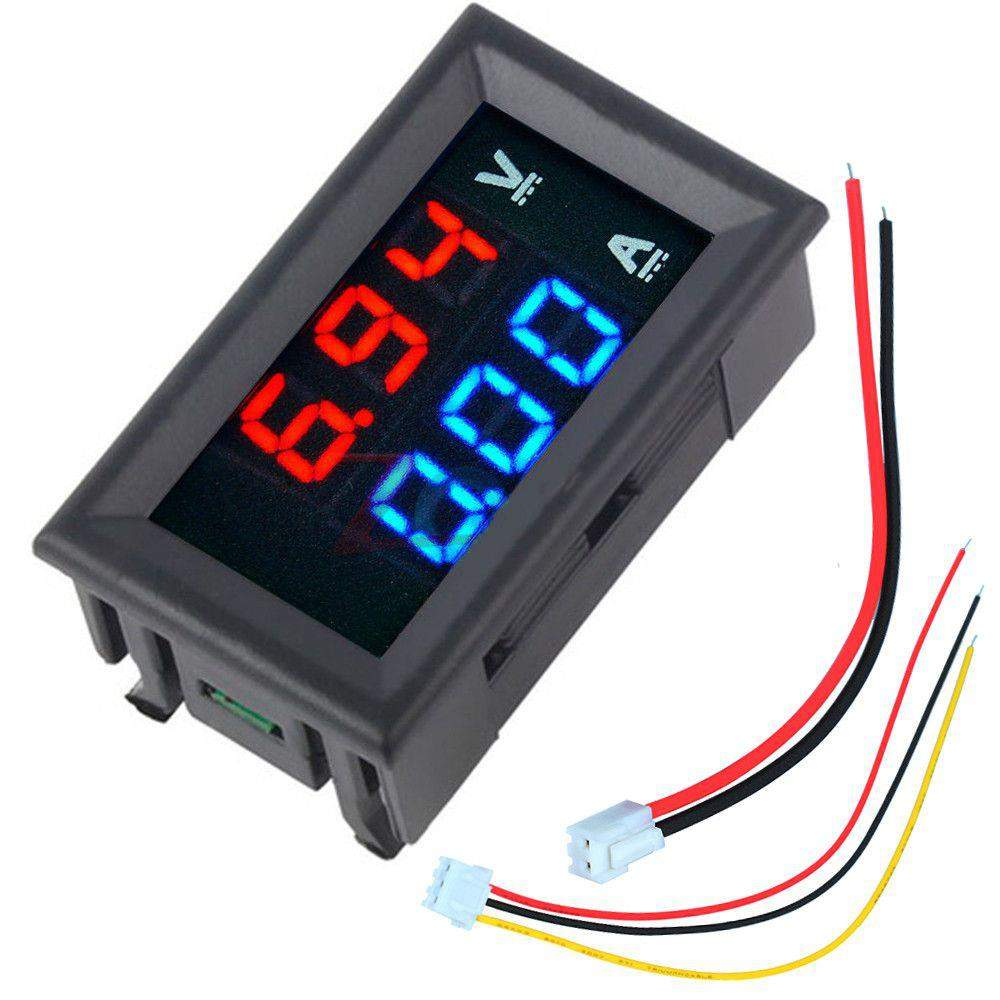

One thing to note is, this meter has 2 wiring harnesses. One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage and current are displayed on the same screen at the same time.
Digital Voltmeter is an instrument used to measure the electrical potential difference between two points in a circuit.
Digital Voltmeter displays the voltage readings of a circuit numerically.
- Digital Voltmeter is used to know the actual voltage of different components.
- DVM is widely used to check if there is power in the circuit, such as the mains outlet.
Knowing the voltage across a circuit, current can be calculated.
Input Voltage - 4.5V to 30V DC
Input Current - <= 20mA

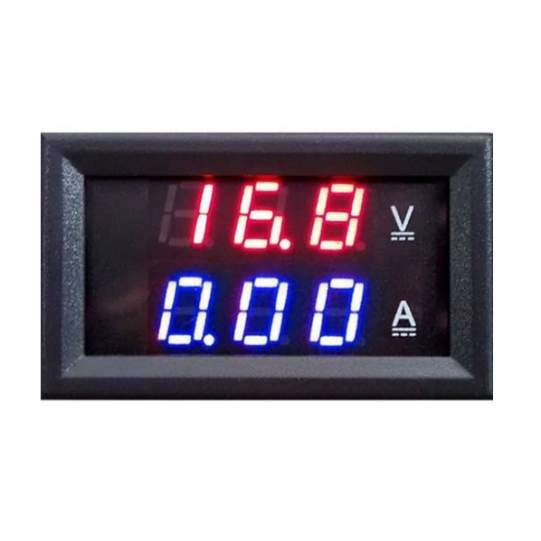

Display Color - Red (Voltage) , Blue (Current)
Measuring Voltage Range - 0V to 100V DC
Measuring Currrent Range - 0A to 10A
Measurement Accuracy - 1%
Minimum Voltage Resolution - 0.1V
Minimum Current Resolution - 0.01A
Size - 48x29x21mm
1 x Digital Voltmeter Ammeter DC 0-100V 10A Dual Red-Blue LED Monitor Panel, Black
I order the meter fault meter not working
This Voltmeter is amazing. I am very happy to see all accurate figure. I loaded it with nearly 10 amperes then after it works fine.
Charging voltage and current.
