- Integrated image collecting and algorithm chip together, ALL-in-One.
- The fingerprint reader can conduct secondary development; can be embedded into a variety of end products.
- Low power consumption, low cost, small size, excellent performance.
- Professional optical technology, precise module manufacturing techniques.
- Good image processing capabilities can successfully capture an image up to resolution 500 dpi
|Operating voltage (v)||
4.2 ~ 6 VDC
|Character file size||
|False Acceptance Rate (FAR)||
|False Rejection Rate (FRR)||
-20 ~ +50 °C
13 × 11 × 6 cm

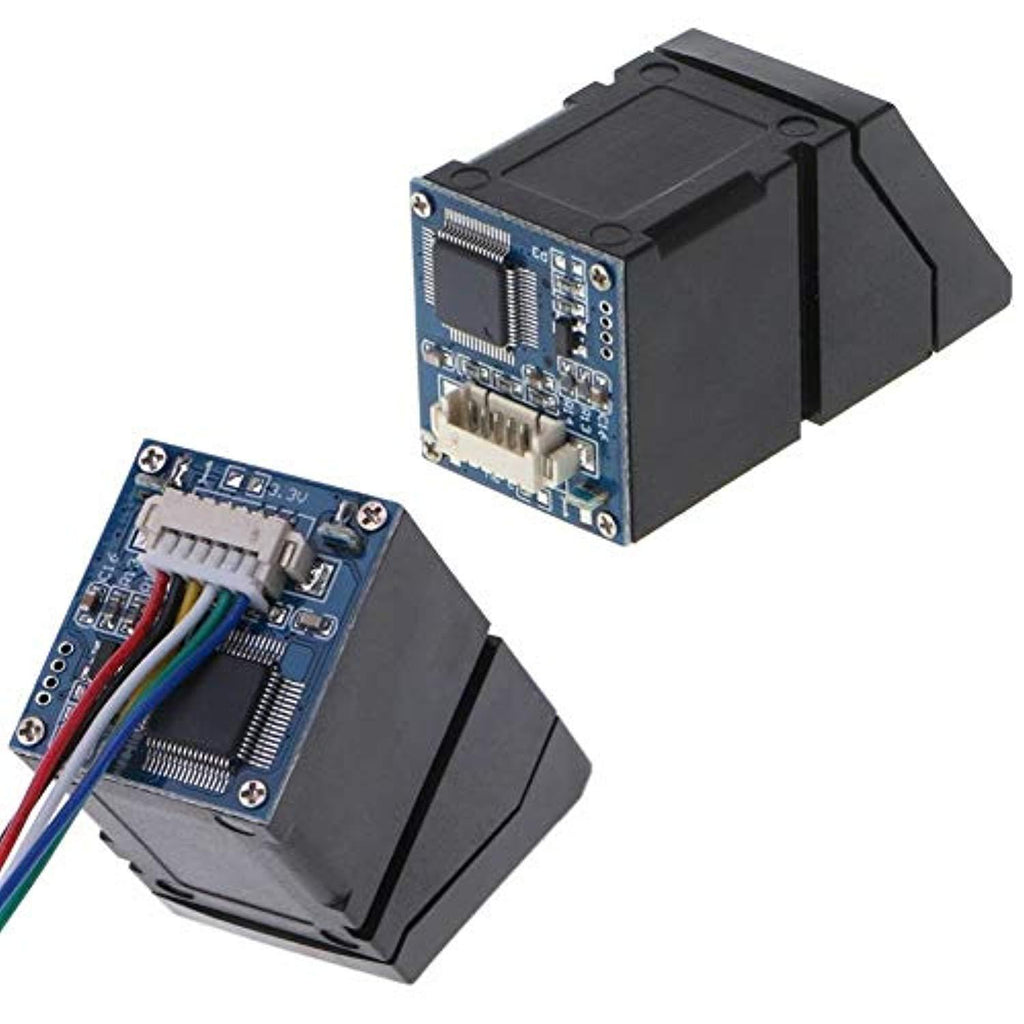

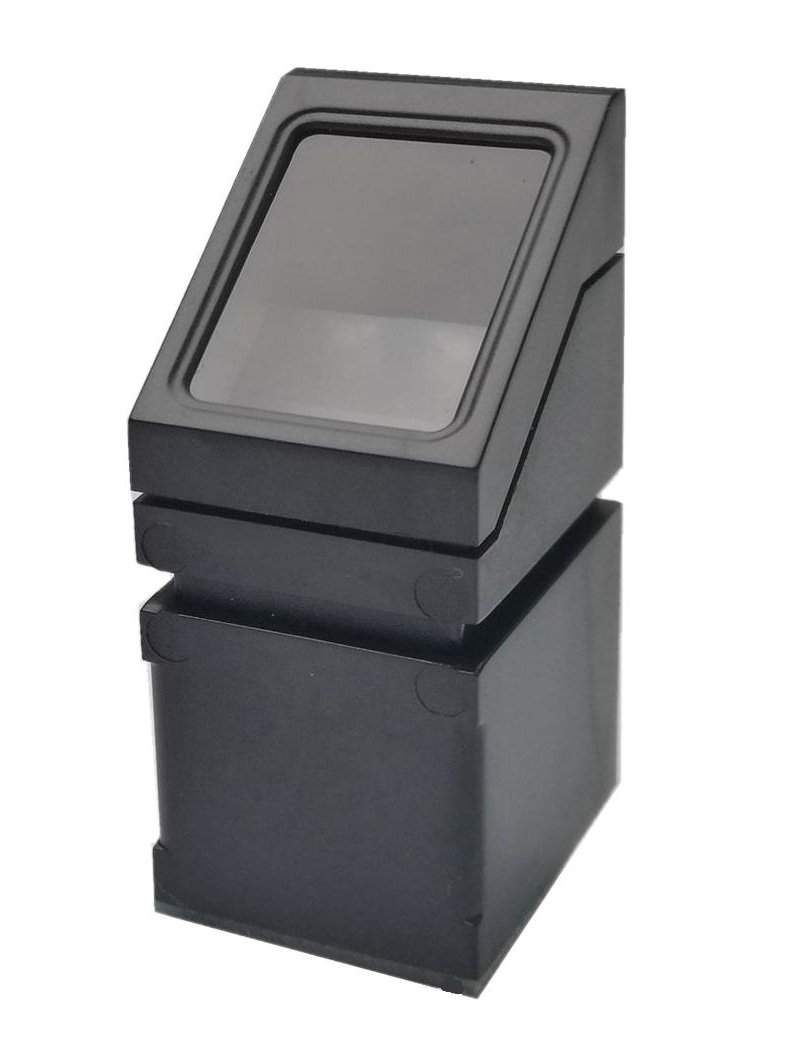

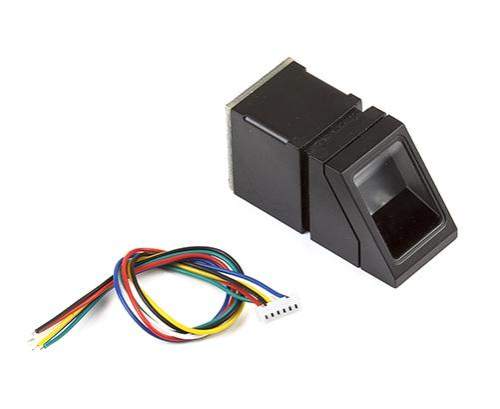

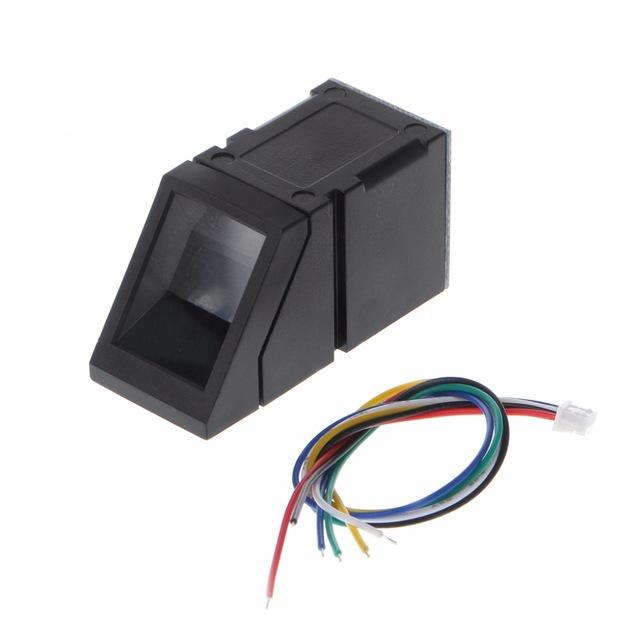

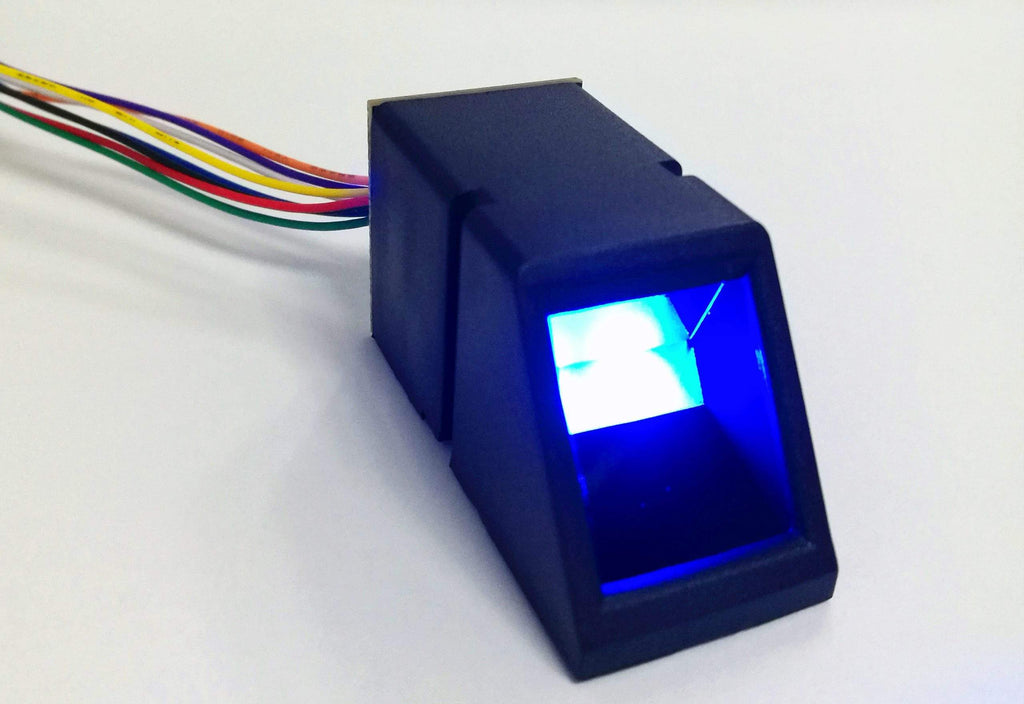

This is the R307 Optical Fingerprint Reader Sensor Module. R307 fingerprint module is a fingerprint sensor with a TTL UART interface for direct connections to microcontroller UART or to PC through MAX232 / USB-Serial adapter. The user can store the fingerprint data in the module and can configure it in 1:1 or 1: N mode for identifying the person.
The FP module can directly interface with 3.3 or 5v Microcontroller. A level converter (like MAX232) is required for interfacing with PC serial port.
Resolution: 500 DPI
Operating Temperature: -20 ~ +50 °C
Length (mm): 46
Width (mm): 21
Height (mm): 23.5
Weight (gm): 20
Shipment Weight: 0.095 kg
1 x R307 Optical Fingerprint Reader Sensor Module, Finger Detection Function (Multicolour, 3 Inches)
Can someone please tell me the color encoding of pins for the sensor
good product, in good budget.
Great purchase with a reasonable price.
Low power consumption with low price. this website is too good.
Its scanning is very fast but asa compare to other products its price is moreAnd its bord is not covered.
