The PAM8403 is a 3W+3W, class-D audio amplifier. It offers low THD+N, allowing it to achieve high-quality sound reproduction. The new filter-less architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of its Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications.
- Operating Voltage: 2.5~5.5VDC
- Maximum Output Power: 3Wx2
- PCB size is about: length 30mm width 22mm overall height after installed is about 16mm
- Built with switch Potentiometer, can adjust the volume & control power switch freely!
- Flexible assembly usage
- Efficiency can reach above: 90%
- Length: 30mm
- Width: 20mm
- Weight: 8gm
- Dual channel stereo, high output power (3 w + 3 w power @ 5V and 4 ohms load) Good sound quality
- Can use computer USB for power supply directly. Double panel wiring solves crosstalk.
- Super mini design allows it to be easily placed in a variety of digital products.
- 3W Output at 10% THD with a 4ΩLoad and 5V Power Supply
- Filter-less, Low Quiescent Current and Low EMI
- Low THD+N
- Superior Low Noise
- Efficiency up to 90%
- Short Circuit Protection
- Thermal Shutdown

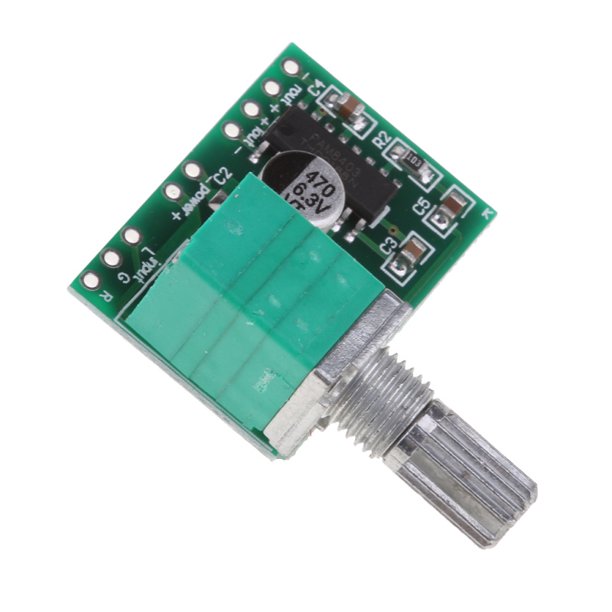

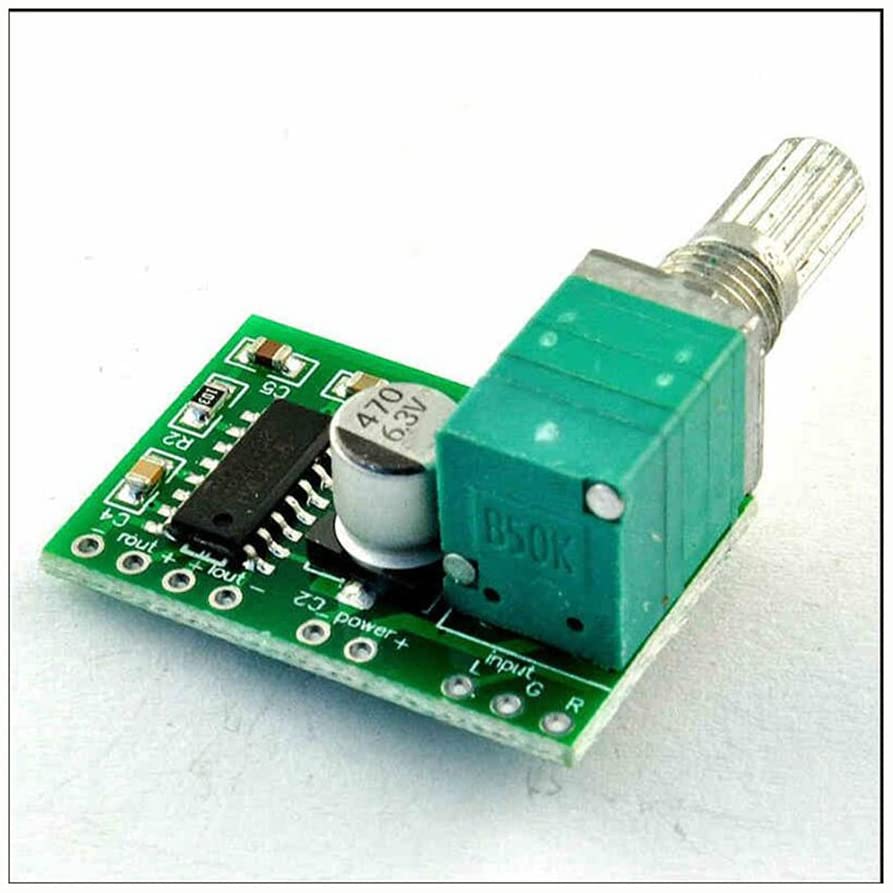

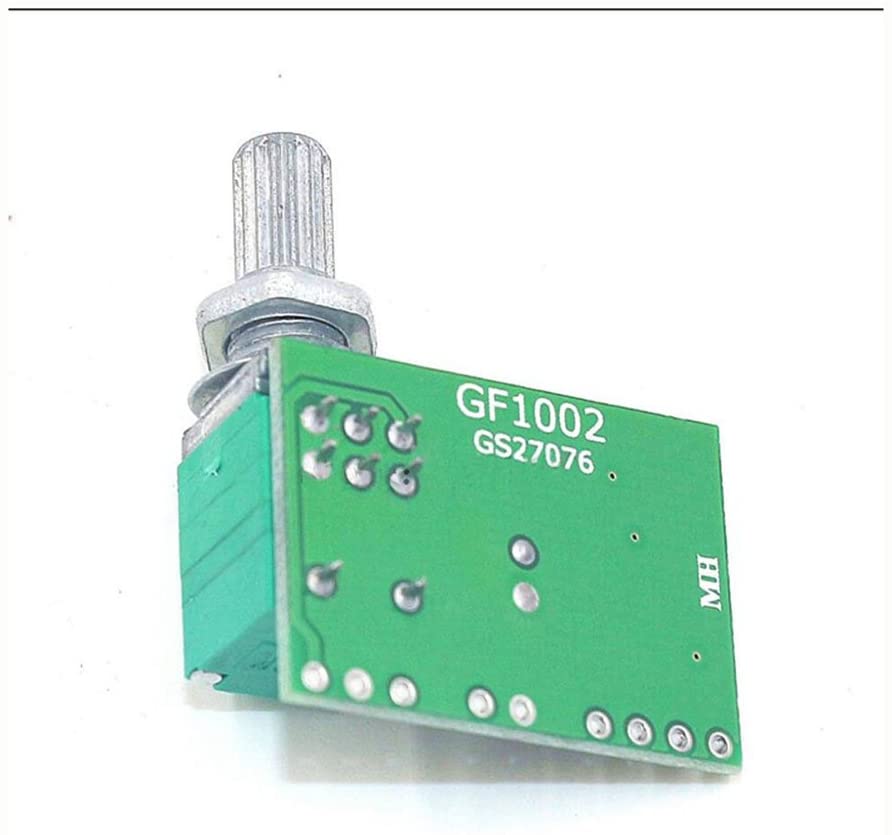

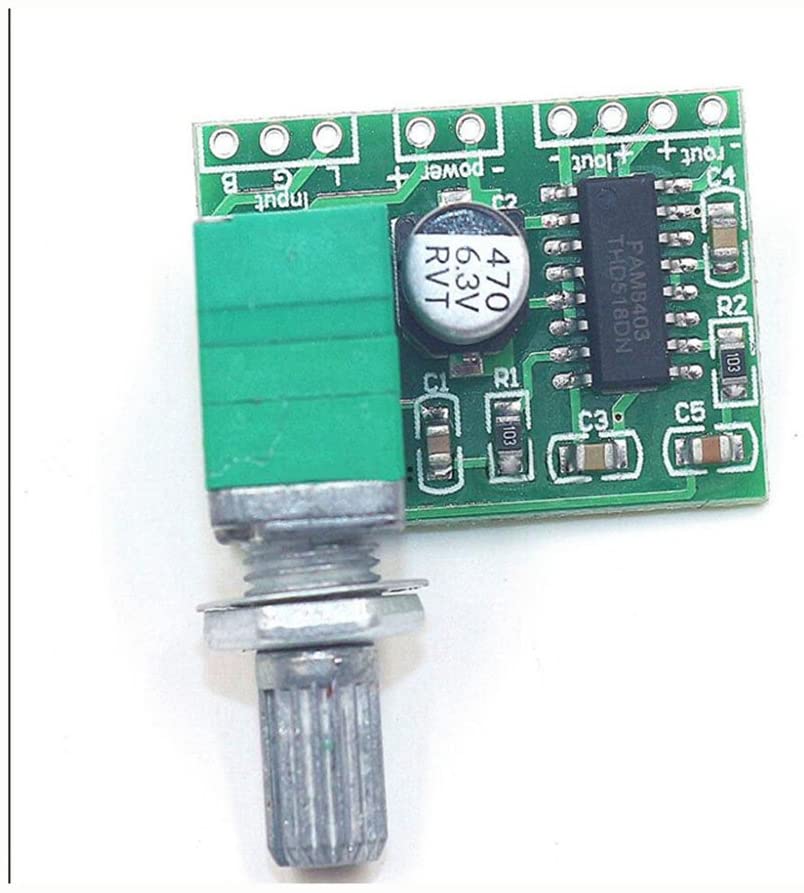

- 1 x PAM8403 Mini 5V Audio Amplifier Board with Switch Potentiometer
1 x PAM8403 Mini 5V Audio Amplifier Board with Switch Potentiometer
