- Its an upgraded version of MG995 servo.
- Includes a new PCB and IC control system which makes it far more accurate.
- Its internal gearing and motor are also upgraded to improve dead bandwidth and centering.
MG996R has the ability to rotate continuously in 180 degrees. It makes this servo motor perfect for robotics or even the rotation of camera sliders.

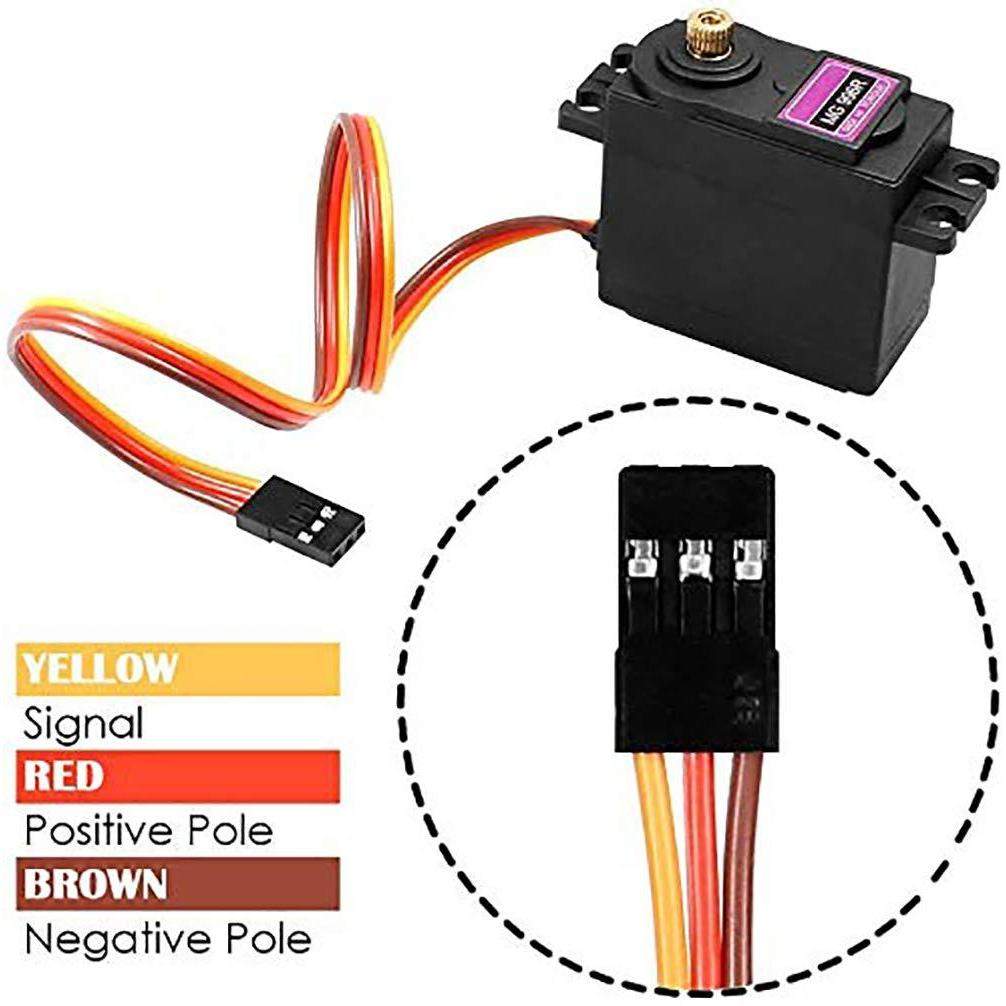

Wire Description :-
RED – Positive
Brown – Negative
Orange – Signal

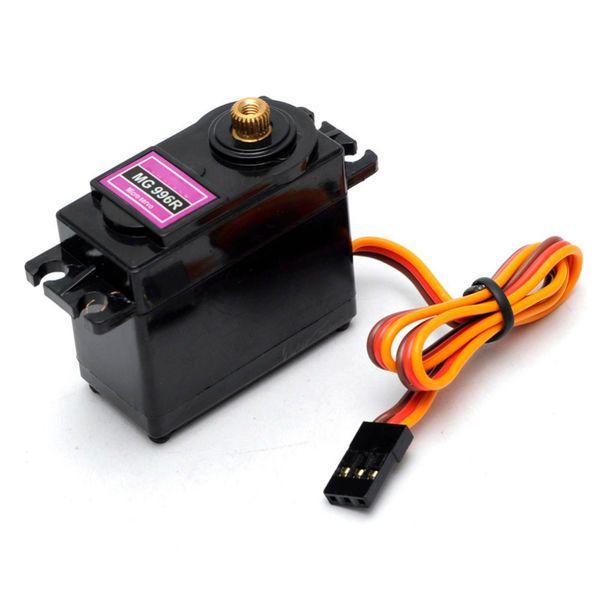

The MG996R is a metal gear servo motor with a maximum stall torque of 11 kg/cm. Like other RC servos the motor rotates from 0 to 180 degrees based on the duty cycle of the PWM wave supplied to its signal pin.
- Used as actuators in many robots like Biped Robot, Hexapod, robotic arm etc..
- Commonly used for a steering system in RC toys
- Robots where position control is required without feedback
- Less weight hence used in multi DOF robots like humanoid robots
- Servo Plug: JR (Fits JR and Futaba)

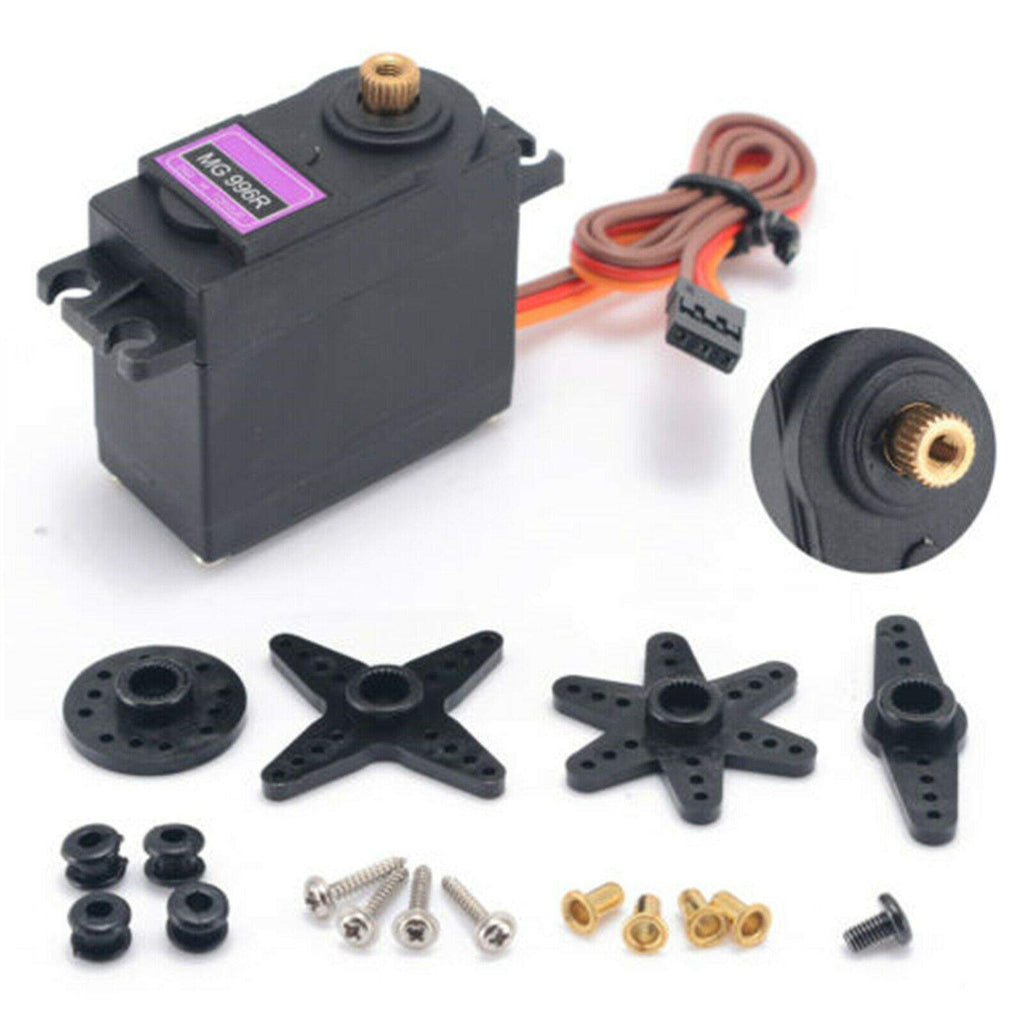

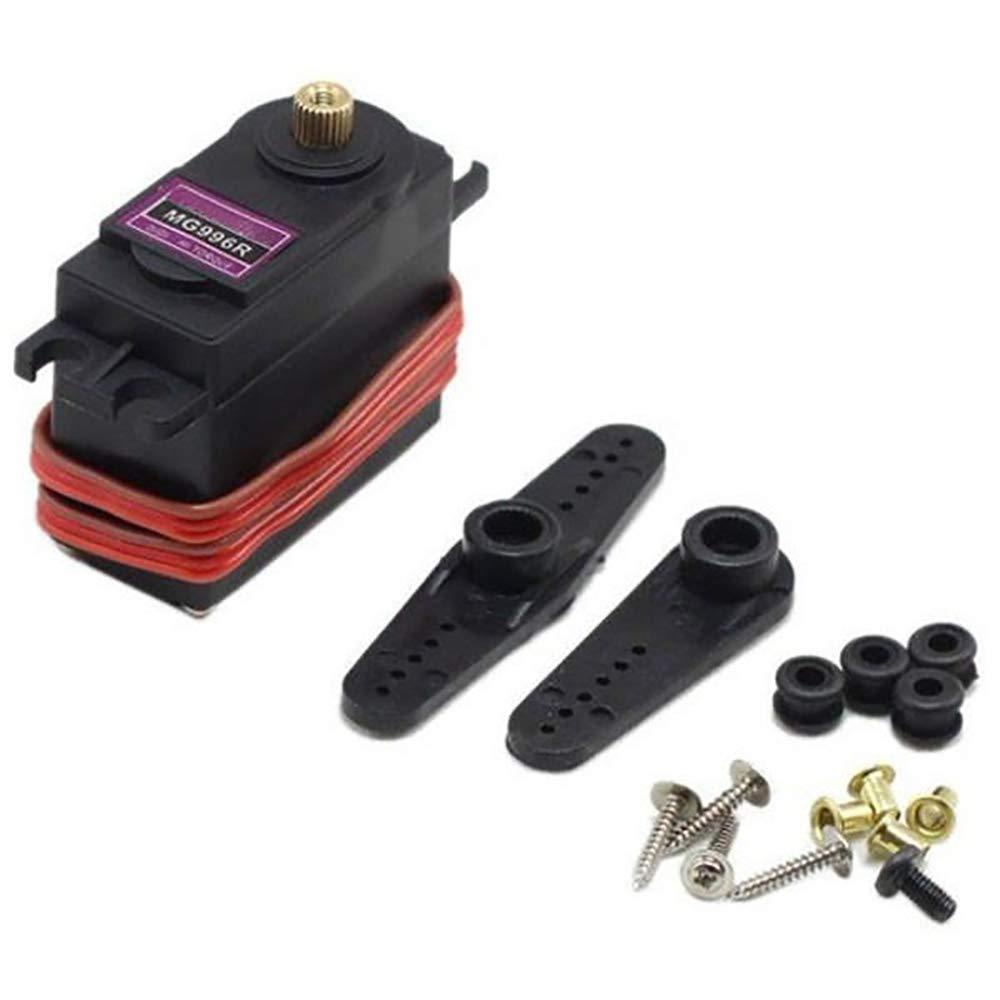

- Servo arms & screws included, and fit with Futaba servo arm
- It’s a universal “S” type connector that fits most receivers, including Futaba, JR, Hitec, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
- CE & RoHS approved
- Upgraded gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.
- Stable and Shock Proof
- Connector Wire Length : 300 mm
- Power Supply : Through External Adapter
IN THE BOX:
MG996R by Robotbanao comes included with -
1 X MG996R
Exact product as per advertisement. Worked without issue. Value for money.
Received as described(180 deg rotation), checked as soon as received, working fine. Do not connect it directly to Arduino board as recommended. it consumes a huge current due Arduino keeps on restarting which may damage the on board 5 V regulator.
The product is very good. Also this is my first Metal Gears Digital RC Servo Motor . I thought it won t work but it works and I am satisfied .Easy to install it is also for beginners.
Product quality ---- awesome.
