LM2596 DC-DC Buck Converter Adjustable Step-Down Power Supply Module (3.0-40V - 1.5-35V) - Robotbanao.com

Roll over image to zoom in Click on image to zoom

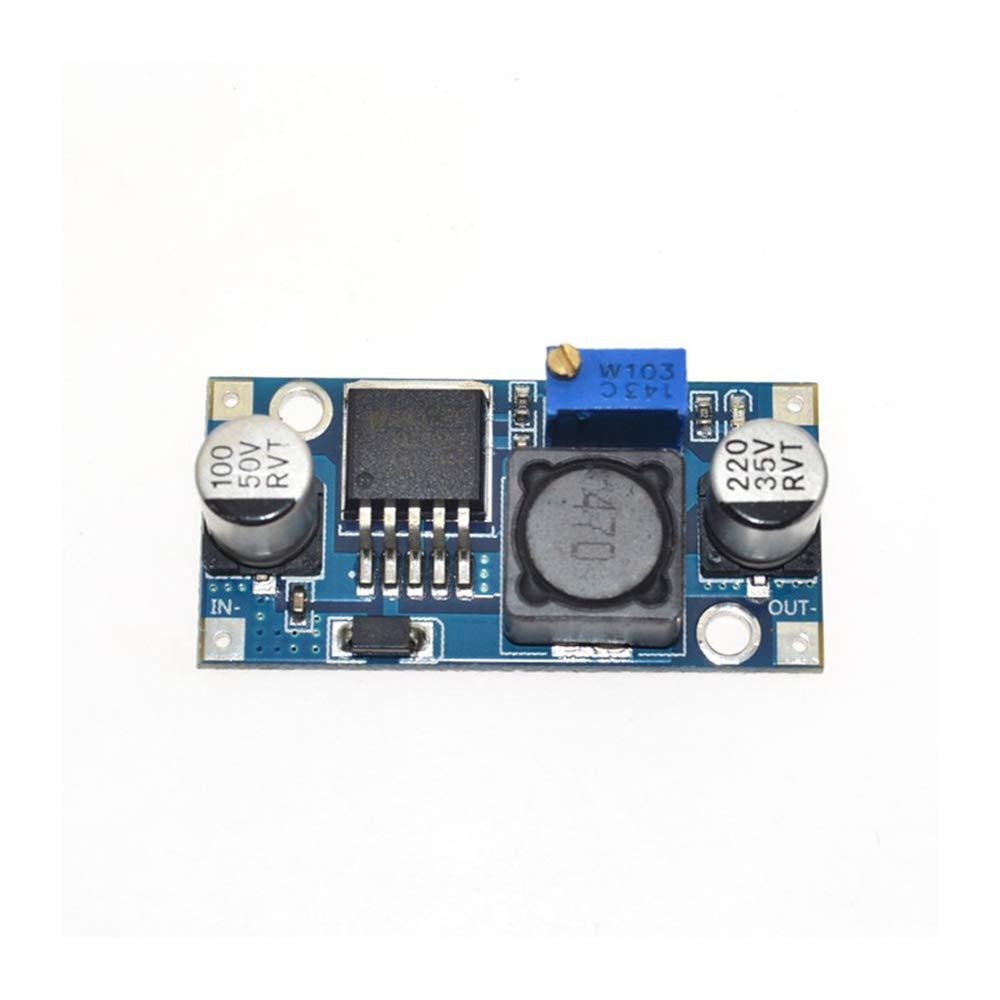

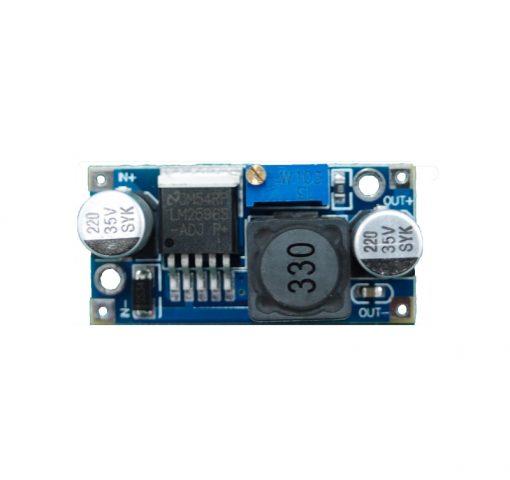

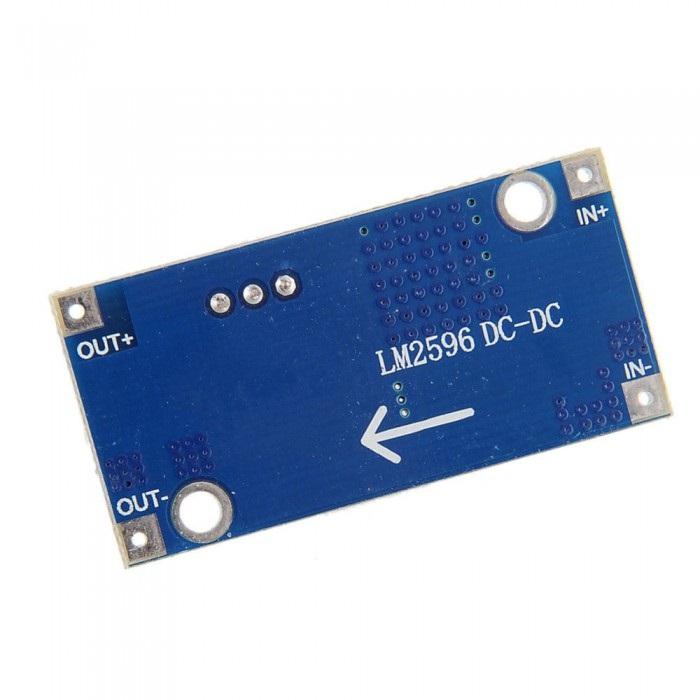

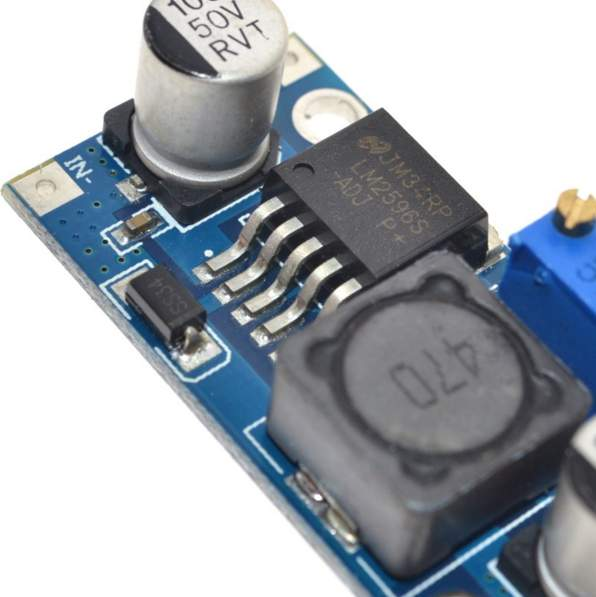

LM2596 DC-DC Buck Converter Adjustable Step-Down Power Supply Module (3.0-40V - 1.5-35V)

Name: LM2596 DC to DC Buck Converter 3.0-40V to 1.5-35V Power Supply Step Down Module
Brand: Robotbanao.com
SKU: RB-1202
Price: 76.00 INR
Availability: InStock

Save 36%

Robotbanao.comSKU: RB-1202

Price:

Rs. 76.00 Rs. 119.00

Tax included Shipping calculated at checkout

Stock:

In stock

Quantity:

Available Offers :

First Purchase: Get 5% off on your first order use code FIRST

Reward Points : Get 2 Coin for every ₹1 spent.

Share this product

PRODUCT OVERVIEW:

Input voltage:3-40V
Output voltage:1.5-35V(Adjustable)
Output current: Rated current is 2A, maximum 3A(Additional heatsink is required)
Module Properties: non-isolated constant voltage module
Rectification: non-synchronous rectification
Short circuit protection: current limiting, since the recovery.

Specification:

Input Voltage (V)	4 ~ 40 VDC
Output Voltage(V)	3 ~ 35
Max. Output Current (A)	3
Conversion efficiency	92%(highest)
Switching frequency	150 KHz
Output ripple	30mA (maximum)
Load Regulation	± 0.5%
Voltage Regulation	± 0.5%
Dynamic Response speed	5% 200uS
Operating Temperature (°C)	-40 to 90
PCB Size ( L x W ) mm	40 x 20
Shipment Weight	0.095 kg
Shipment Dimensions	9 × 7 × 5 cm

LM2596 DC-DC Buck Converter Adjustable Step-Down Power Supply Module is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.

The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.

This is an LM2596 DC-DC buck converter step down power module with the high-precision potentiometer, capable of driving a load up to 3A with high efficiency, which can work with Freeduino UNO, other mainboards, and basic modules. When the output current keeps greater than 2.5A (or output power greater than 10W), please add a heat sink to it.

This device is internally compensated to minimize the number of external components to simplify the power supply design.

Since LM2596 converter is a switch-mode power supply, its efficiency is significantly higher in comparison with popular three-terminal linear regulators, especially with higher input voltages. The LM2596 operates at a switching frequency of 150 kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators.

1 x LM2596 DC-DC Buck Converter Adjustable Step-Down Power Supply Module (3.0-40V - 1.5-35V)
