PRODUCT OVERVIEW:
- It's a typical Motor driver or Motor Driver IC.
- It allows DC motor to drive on either direction.
- It's a 16-pin IC that can control a set of two DC motors simultaneously in any direction.
- You can control two DC motor with a single L293D IC
Specification
Continuous Output Current |
1.2A
|
Logic control voltage Vss |
4.5~5.5V
|
Dimensions in mm (LxWxH) |
70x54x18
|
Weight (gm) |
35
|
Shipment Weight |
0.037 kg
|
Shipment Dimensions |
8 × 6 × 3 cm
|
--

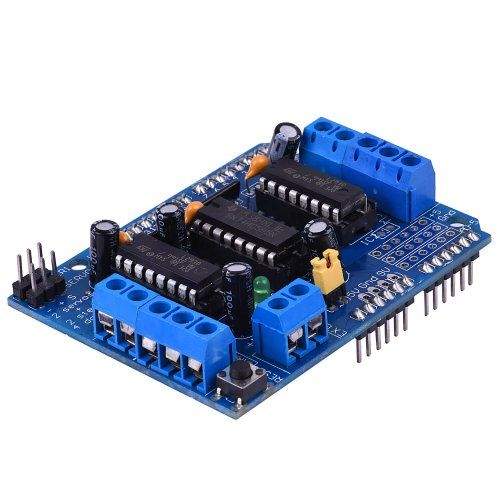

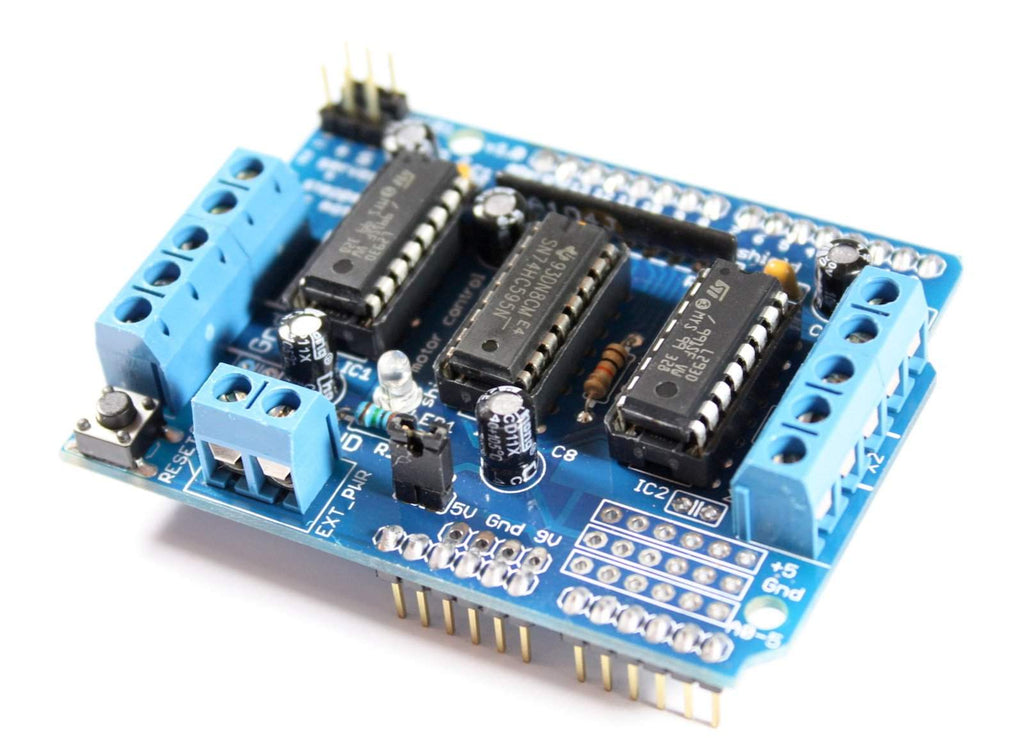

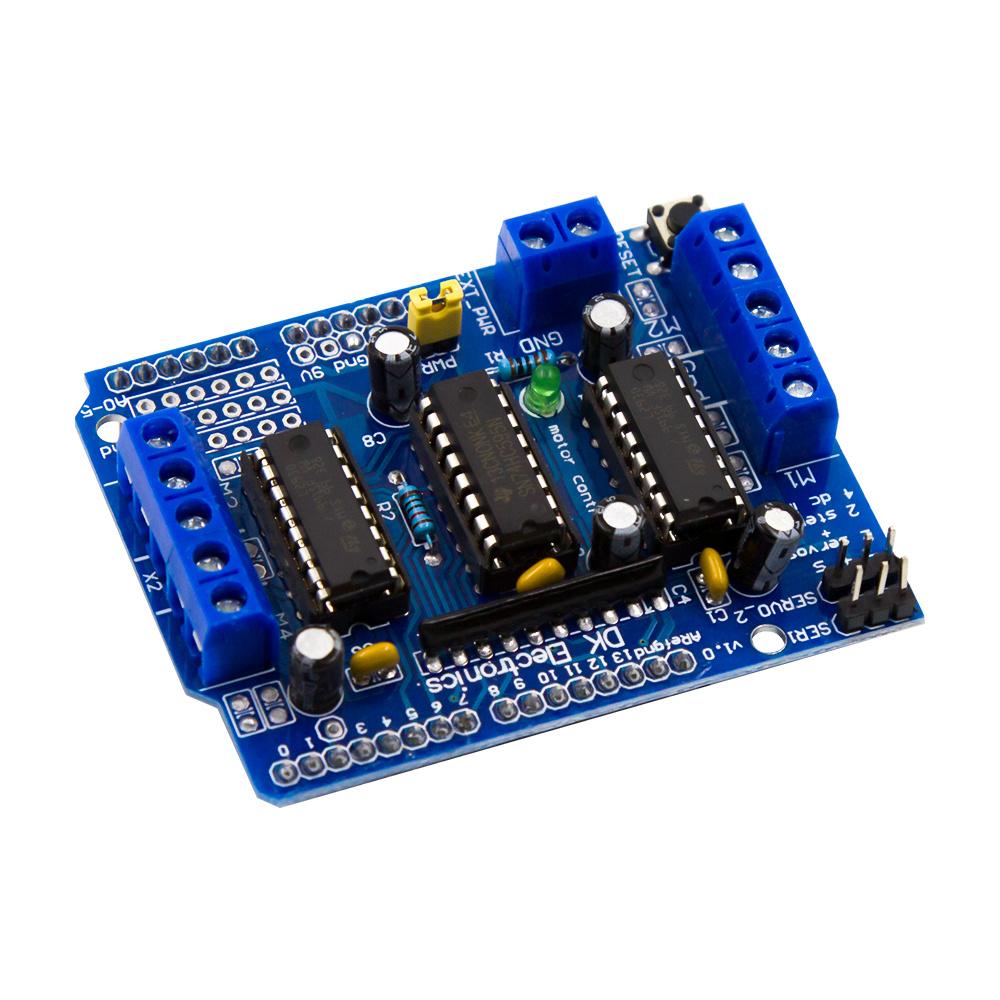

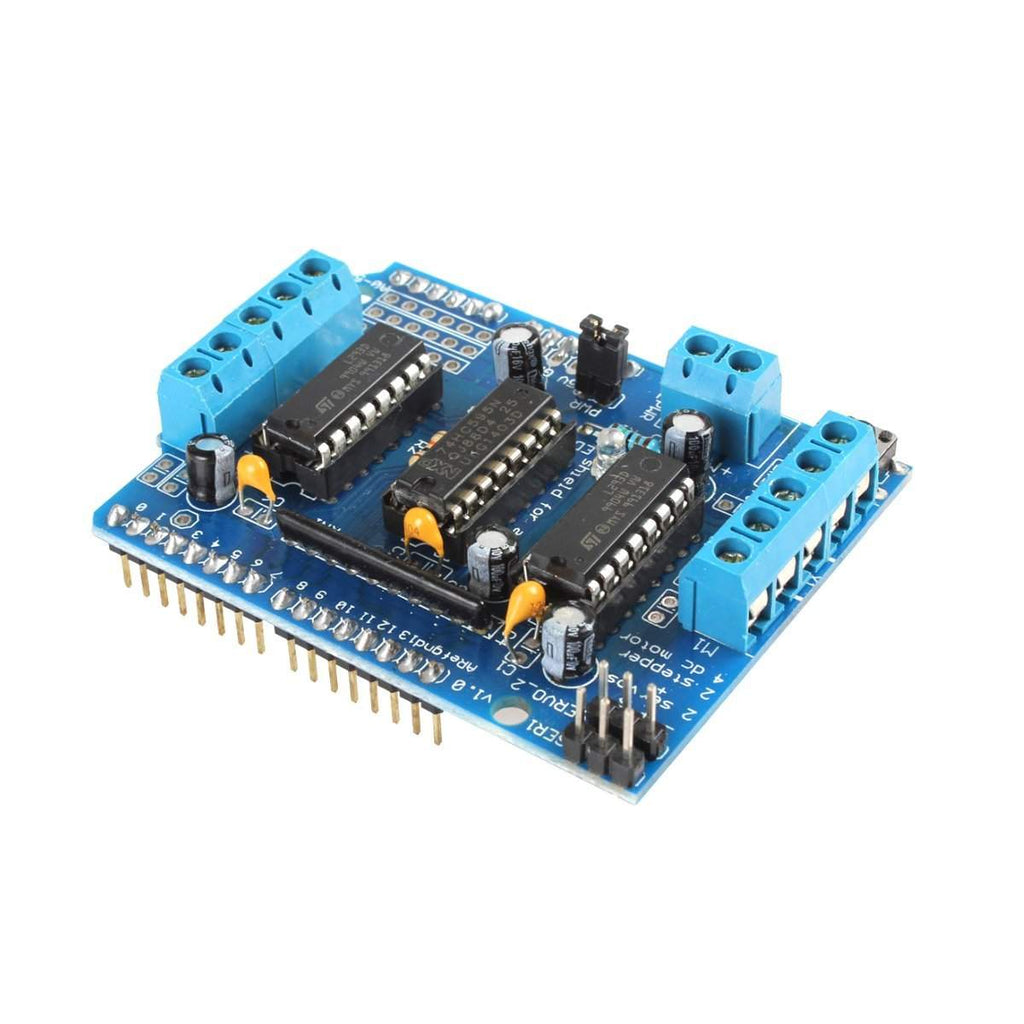

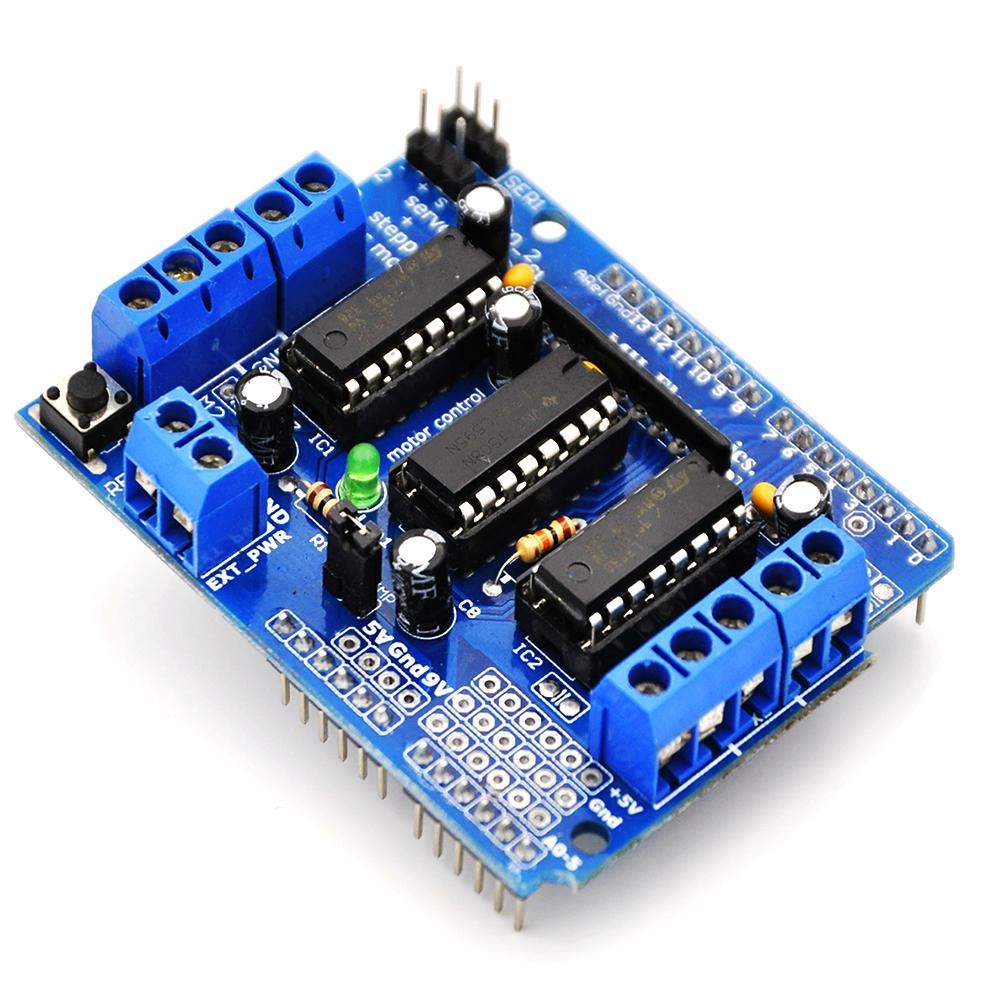

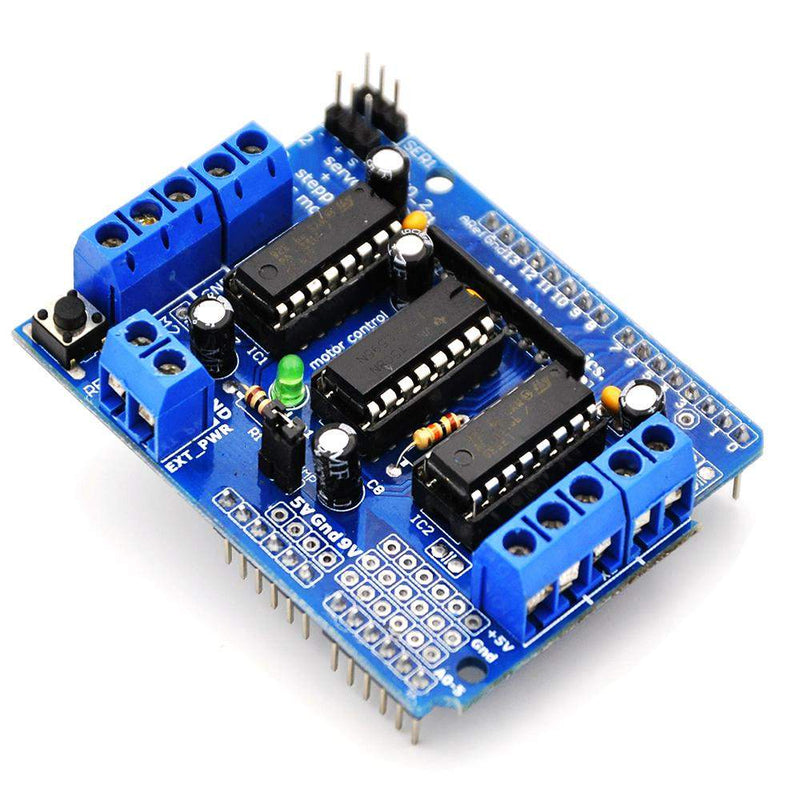

L293D Motor Driver/Servo Shield for Arduino is probably one of the most versatile on the market and features 2 servo and 4 motor connectors for DC or stepper motors. That makes it a great shield for any robotic project.
This Arduino compatible motor Driver shield is a full-featured product that it can be used to drive 4 DC motors or two 4-wires steppers and two 5v servos. It drives the DC motor and stepper with the L293D, and it drives the servo with Arduino pin9 and pin10.
L293D is a monolithic integrated, high voltage, high current, 4-channel driver. Basically, this means using this chip you can use DC motors and power supplies of up to 36 Volts, that some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what’s known as a type of H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output.
Features :-
- connections for 5V ‘hobby’ servos connected to the Arduino’s high-resolution dedicated timer
- H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 25VDC.
- Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
- Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
- Pull-down resistors keep motors disabled during power-up
- Big terminal block connectors to easily hook up wires (18-26AWG) and power
- Arduino reset button brought up top
- 2-pin terminal block and jumper to connect external power, for separate logic/motor supplies
- Tested compatible with Arduino Mega 1280 & 2560, Diecimila, Duemilanove, and UNO
- Download the easy-to-use Arduino software library, check out the examples and you’re ready to go!
Package Includes :
1 x L293D Motor Driver/Servo Shield for Arduino
