- Its an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V (adjustable freely)
- The output voltage can not be less than the input voltage.
- Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need. Boost charger. You can use the 12V power supply to charge battery more than 12V, for example, 24V battery
|Input Voltage (V)||
10 to 32
12 to 35
|Max. Output Current (A)||
|Operating Temperature (°C)||
-40 to 90
|No-Load Current (mA)||
8 × 5.5 × 3 cm
This versatile DC-DC boost power supply/converter module steps up any input voltage from 10V to 32V to any output voltage from 12V to 35V at up to 150W output power and 6A current.

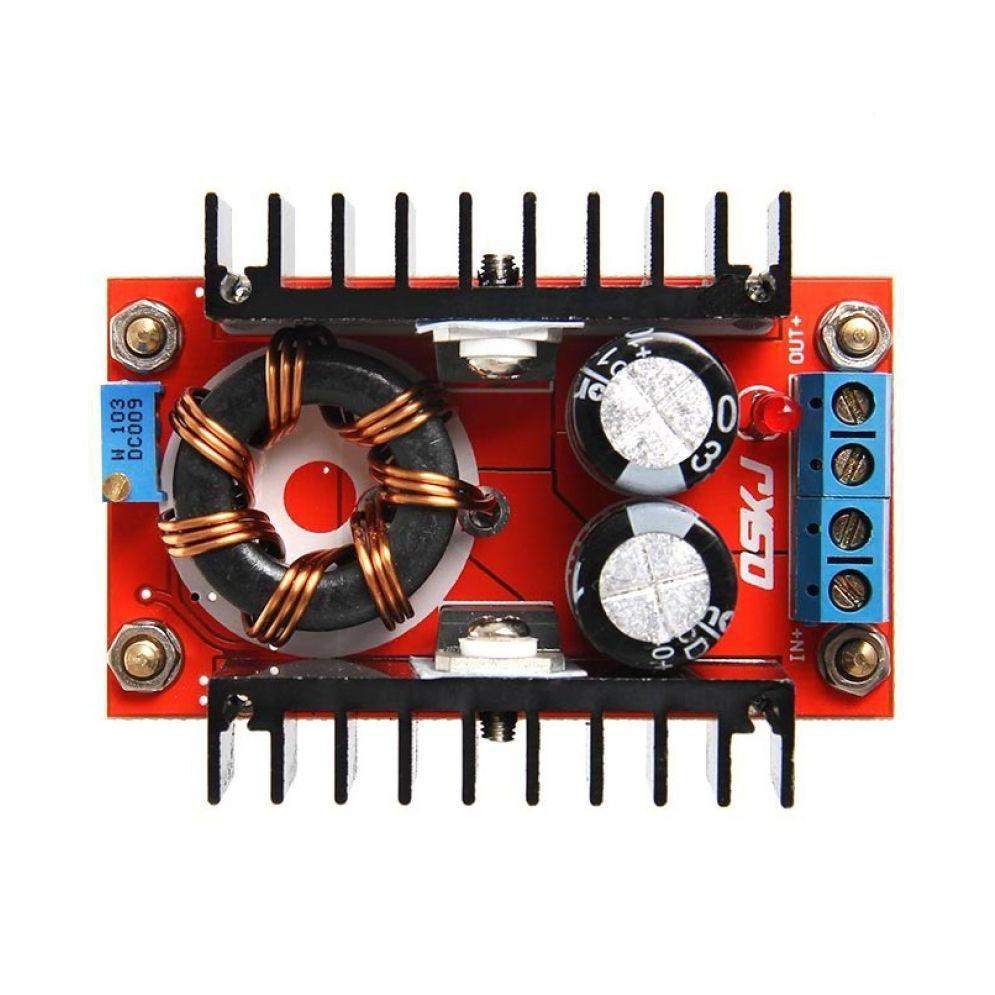

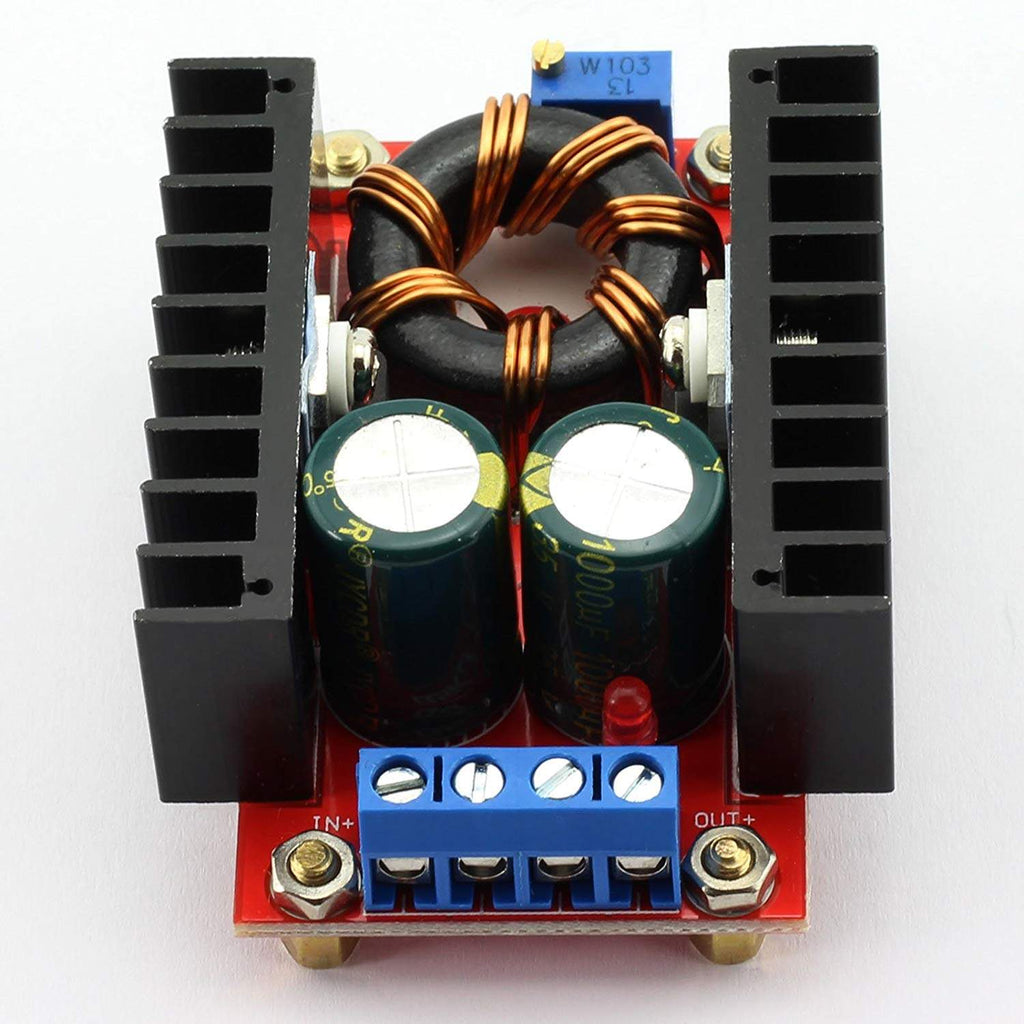

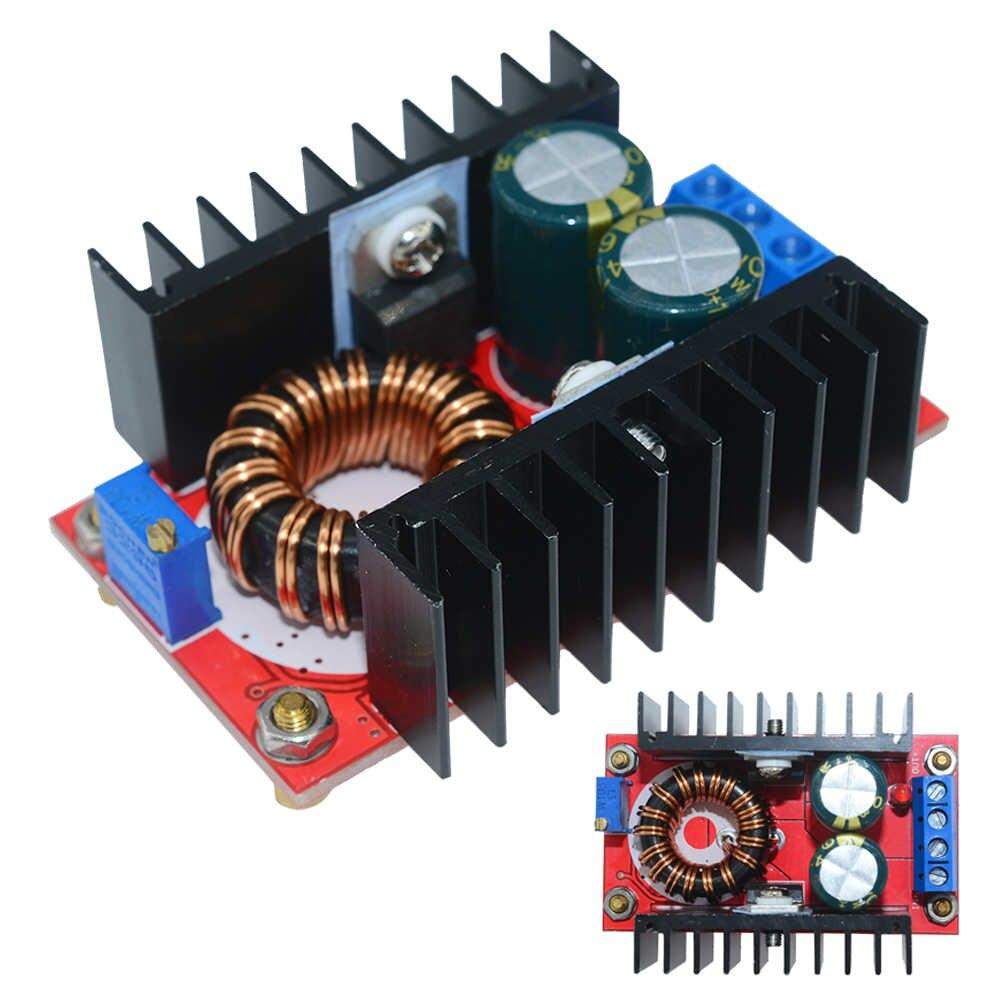

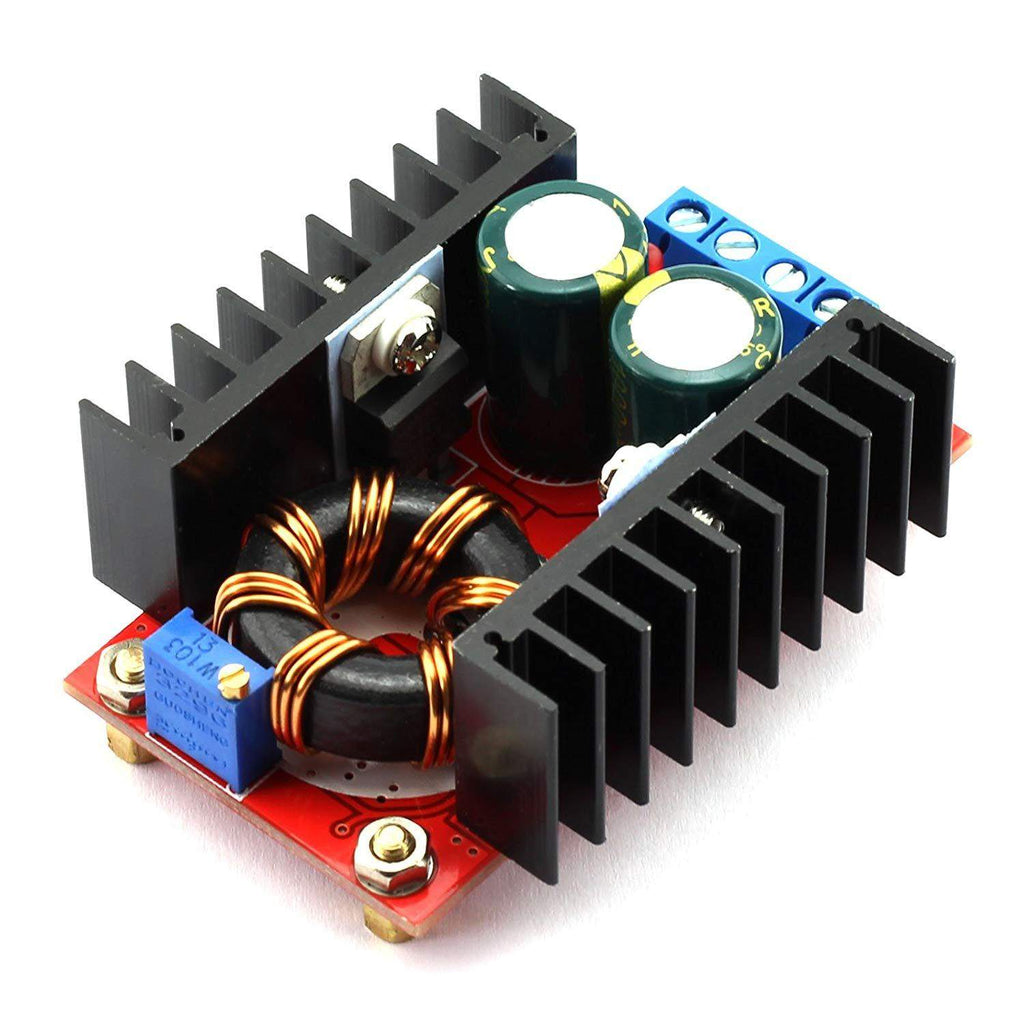

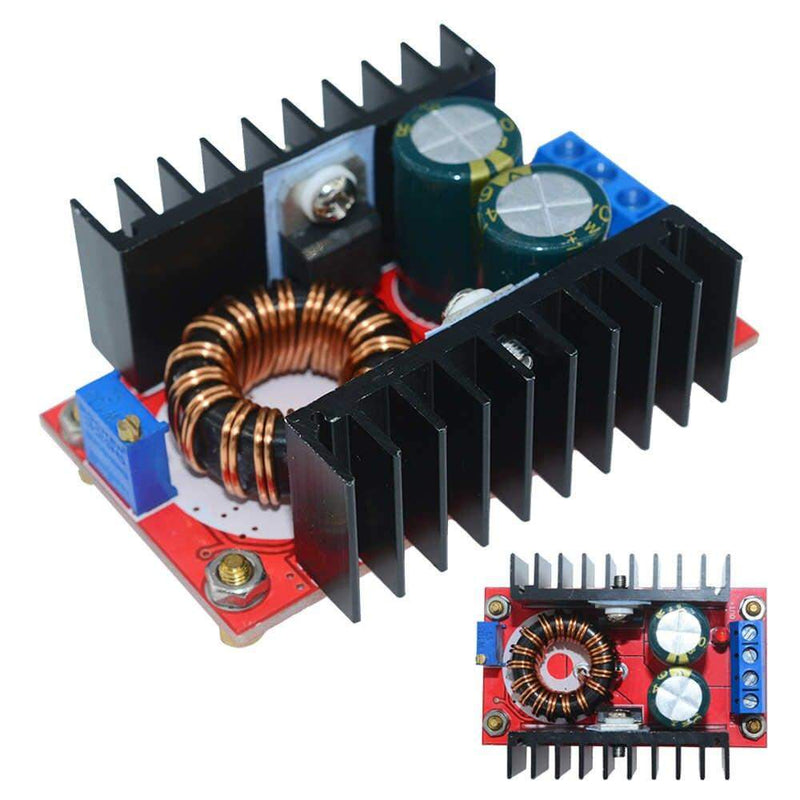

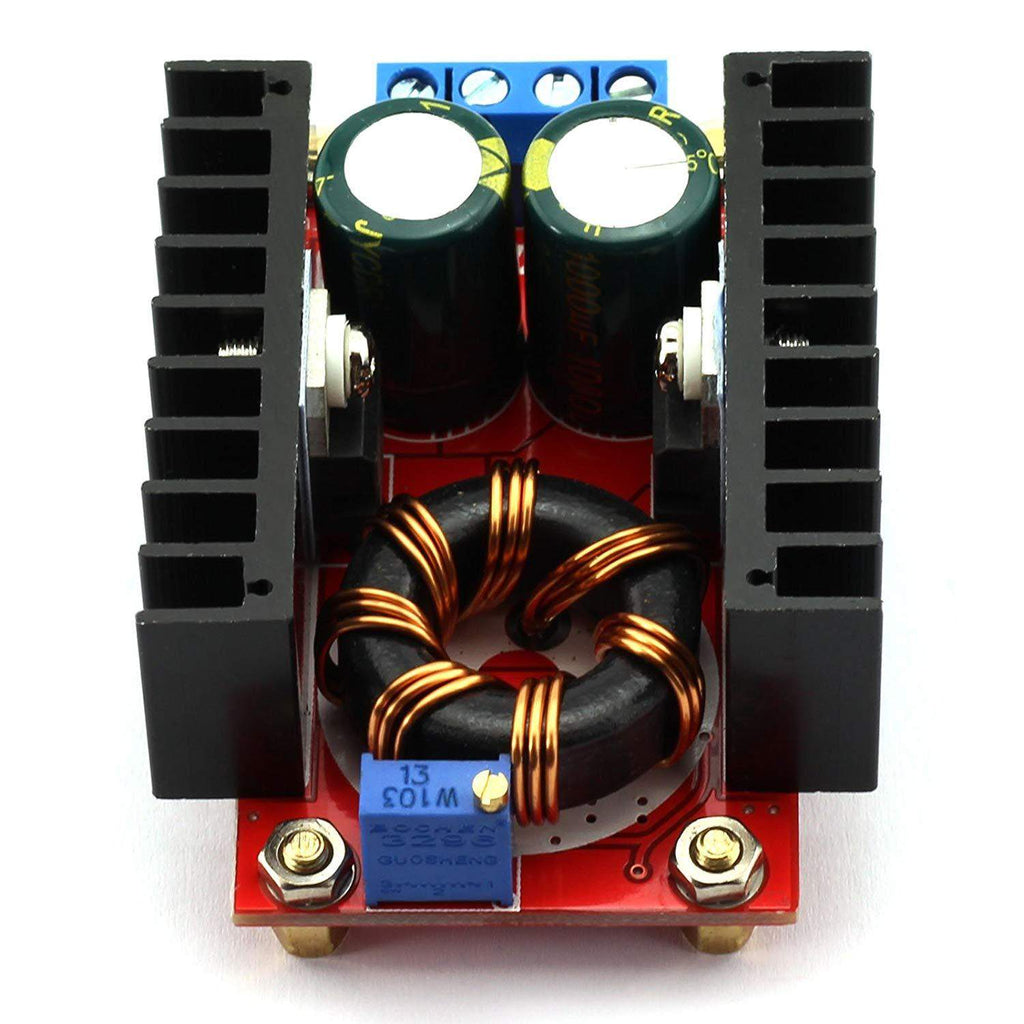

This 150W DC-DC Boost Converter 10-32V to 12-35V 6A Step-Up Adjustable Power Supply is well into the heavy-duty end of the spectrum @ 150W; as you can tell by the huge toroidal inductor and dual heatsinks.
It is especially useful for automotive 12V applications, where standard 12V battery power can be boosted to 19V for use as a laptop computer power supply, or to 18V or 24V for other applications requiring higher voltages.
Please note there is no reverse polarity protection. A series diode is recommended. For high loads this might not be an option; so be cautious of the input polarity or you might fry the module
1 x 150W DC-DC Boost Converter 10-32V to 12-35V 6A Step Up Voltage Power Supply Module
This rating is for the customer service of Robotbanao is superb helping you out if you are a beginner think after using the product i will definitely give review regarding these
mast product hai
Nicely Worked with 12v to 35v, No Heating Issues, Value for Money
Working correctly and boosting voltage from 15v dc to 32v dc
Small but powerful, build quality is superb.
