GY-NEO6MV2 Ublox NEO-6M GPS Positioning Module to Serial TTL for Arduino Flight Controller - Robotbanao.com

Roll over image to zoom in Click on image to zoom

GY-NEO6MV2 Ublox NEO-6M GPS Positioning Module to Serial TTL for Arduino Flight Controller

Name: GY-NEO6MV2 Ublox NEO-6M GPS Positioning Module to Serial TTL for Ardui
Brand: Robotbanao.com
SKU: RB-1223
Price: 431.00 INR
Availability: OutOfStock

Save 40%

Robotbanao.comSKU: RB-1223

Price:

Rs. 431.00 Rs. 719.00

Tax included Shipping calculated at checkout

Stock:

Sold out

Quantity:

Available Offers :

First Purchase: Get 5% off on your first order use code FIRST

Reward Points : Get 2 Coin for every ₹1 spent.

Share this product

PRODUCT OVERVIEW:

5Hz position update rate

Operating temperature range: -40 TO 85°CUART TTL socket

EEPROM to save configuration settings

Rechargeable battery for Backup

The cold start time of 38 s and Hot start time of 1 s

Supply voltage: 3.3 V

Configurable from 4800 Baud to 115200 Baud rates. (default 9600)

Super Sense ® Indoor GPS: -162 dBm tracking sensitivity

Support SBAS (WAAS, EGNOS, MSAS, GAGAN)

Separated 18X18mm GPS antenna

Specification:

Model	Ublox NEO-6M
Receiver Type	50 Channels GPS L1 frequency, C/A Code SBAS: WAAS, EGNOS, MSAS
Input Supply Voltage (VDC)	2.7 ~ 6
Main Chip	NEO-6
Sensitivity (dBm)	-160 156 Cold Start (without aiding): -147 dBm Tracking & Navigation: -161 dBm
Navigation Update Rate	5Hz
Position Accuracy (Meter)	2
Operating Temperature Range (°C)	-24 to 84
Tracking Sensitivity (dBm)	-161 dBm
Avg Cold Start Time (s)	27
Warm Start Time (s)	27
Maximum Speed	500 M/s
Dimensions (mm) LxWxH	Antenna – 25 x 25 x 7 GPS Board – 22 x 30 x 4
Weight (gm)	12
Cable Length (cm)	10
Shipment Weight	0.016 kg
Shipment Dimensions	8 × 6 × 4 cm

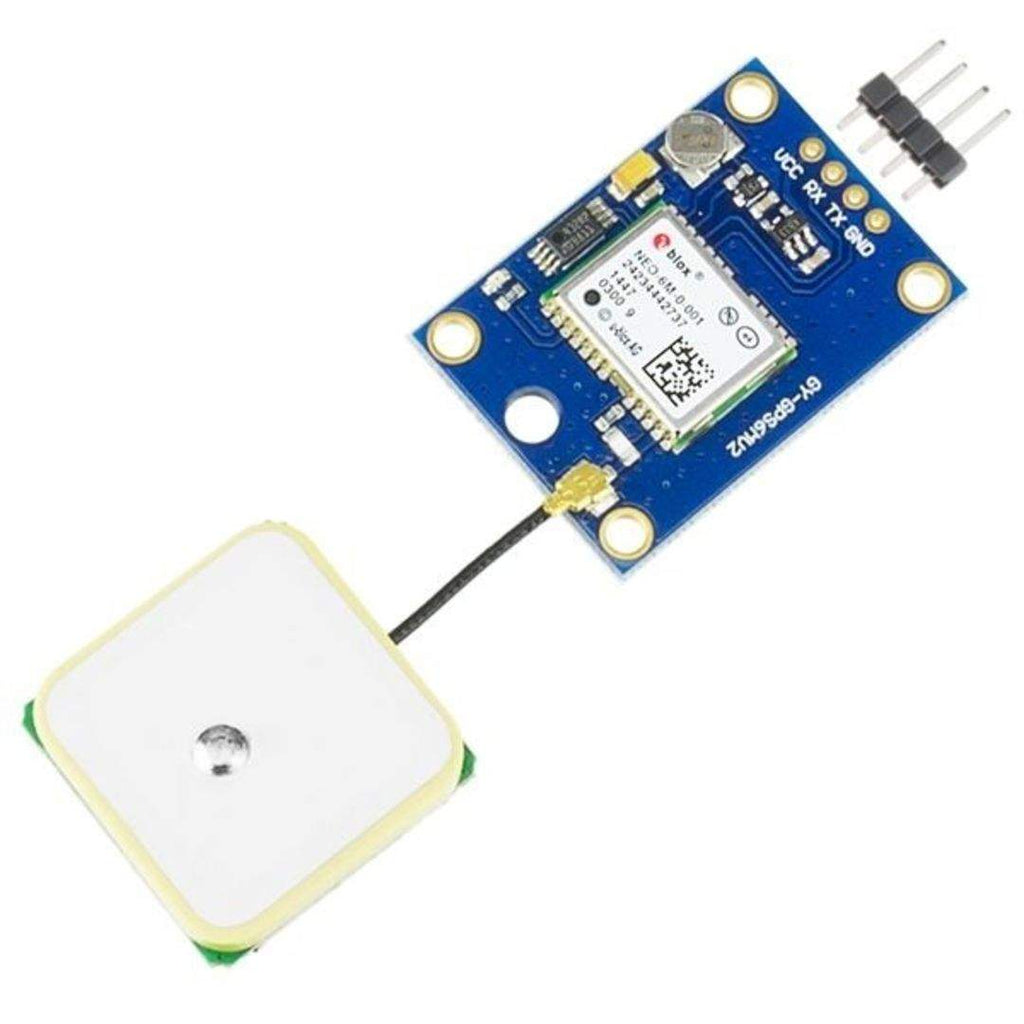

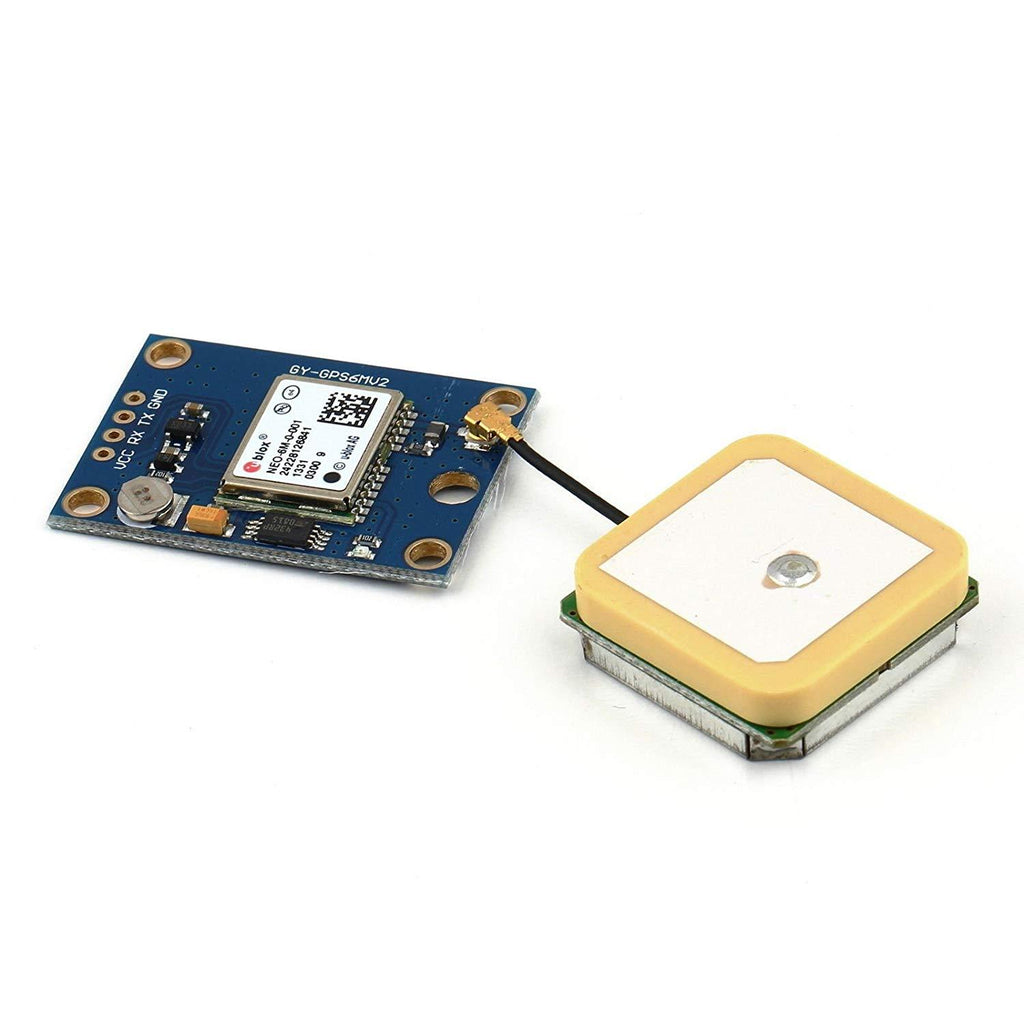

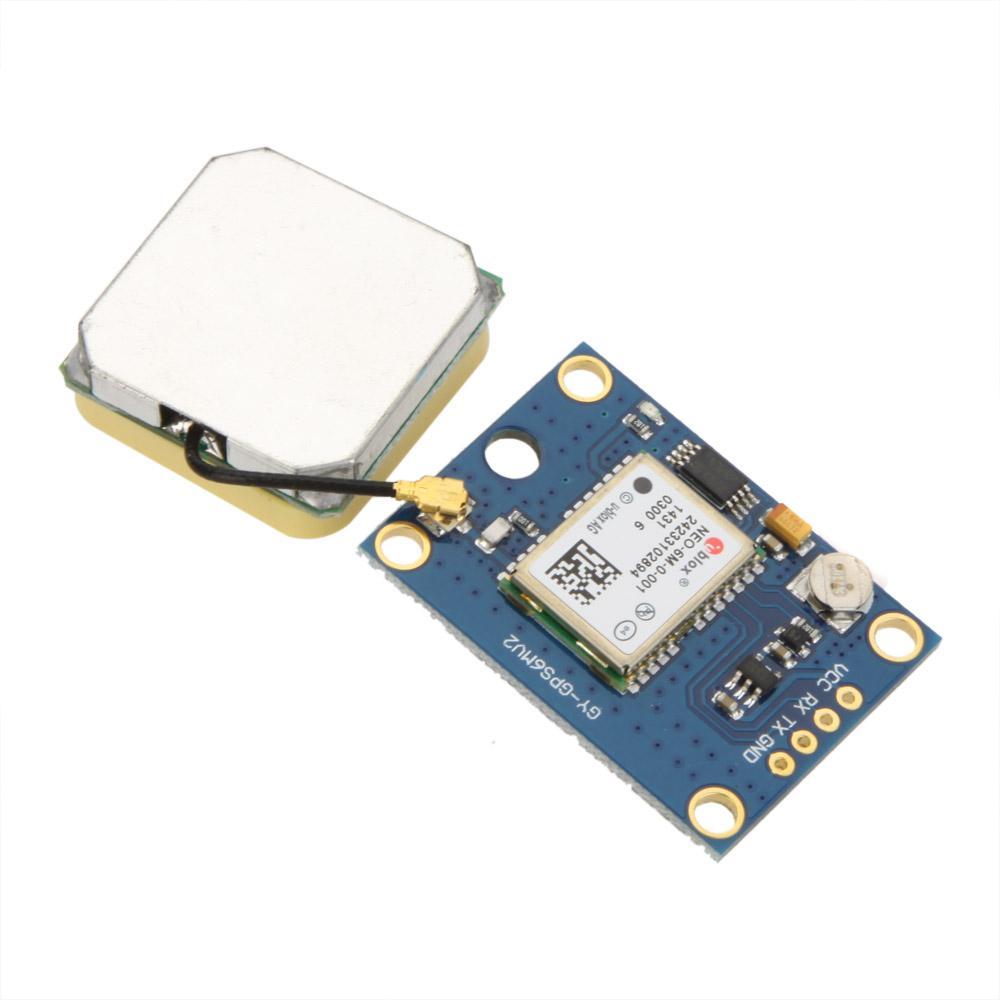

This is a complete GPS module that is based on the Ublox NEO-6M. This unit uses the latest technology from Ublox to give the best possible positioning information and includes a larger built-in 25 x 25mm active GPS antenna with a UART TTL socket. A battery is also included so that you can obtain a GPS lock faster. This is an updated GPS module that can be used with ardupilot mega v2. This GPS module gives the best possible position information, allowing for better performance with your Ardupilot or other Multirotor control platform.

The Ublox NEO-6M GPS engine on this board is a quite good one, with a high precision binary output. It has also high sensitivity for indoor applications. UBLOX NEO-6M GPS Module has a battery for power backup and EEPROM for storing configuration settings. The antenna is connected to the module through a ufl cable which allows for flexibility in mounting the GPS such that the antenna will always see the sky for best performance. This makes it powerful to use with cars and other mobile applications.

The Ublox GPS module has serial TTL output, it has four pins: TX, RX, VCC, and GND. You can download the u-center software for configuring the GPS and changing the settings and much more. It is really good software.

1 x GY-NEO6MV2 Ublox NEO-6M GPS Positioning Module to Serial TTL for Arduino Flight Controller
