Futaba S3003 Standard High Speed Servo Motor for Robots Arduino Smart Car RC Car Airplane Helicopter

PRODUCT OVERVIEW:

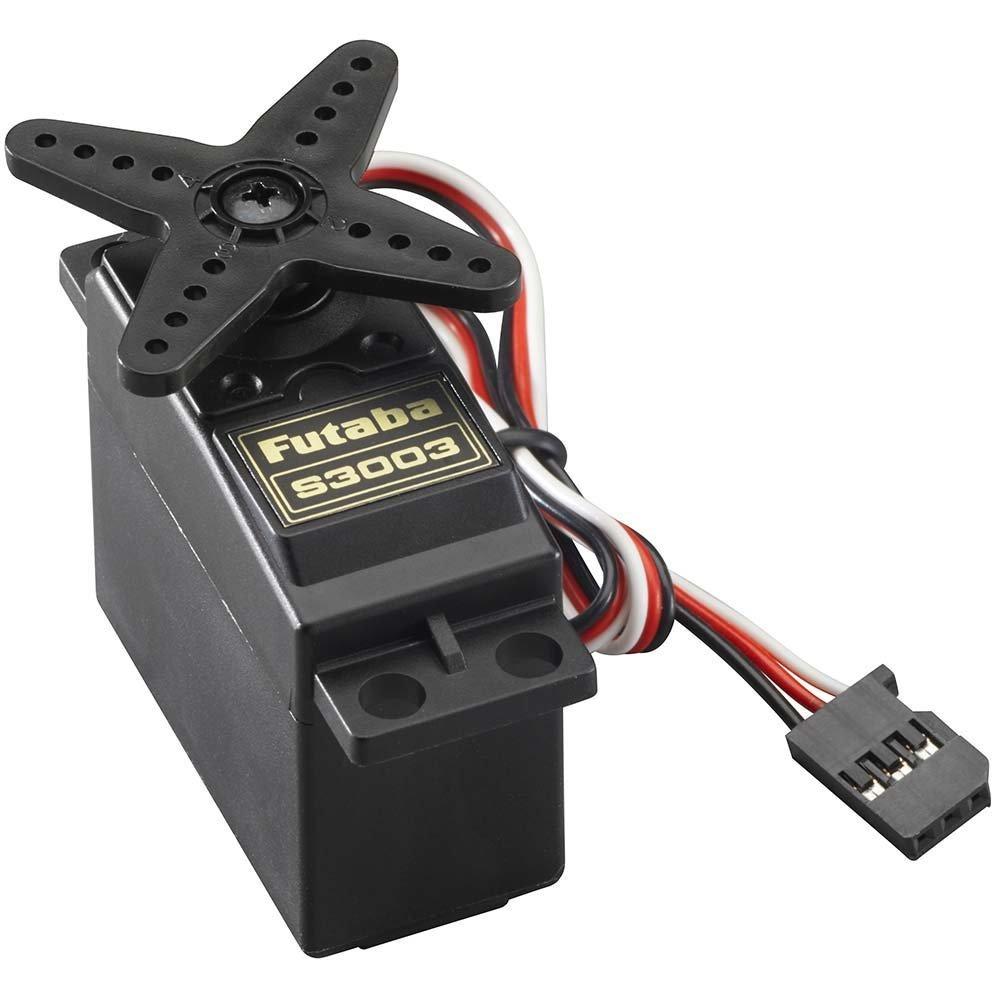

• This is the Futaba S3003 standard servo

• This basic servo is used in cars, boats or where standard servos are used

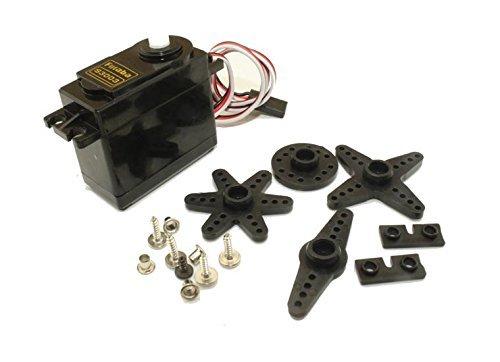

• One S3003 standard servo with pre-installed Xshape servo horn Futm0031 four brass eyelets four black rectangular rubber grommets

• Operating Speed: 0.23 sec/60 degree (at 4.8v) 0.19 sec or 60 degree (at 6.0v)

• Output Torque: 3.2kg.cm (at 4.8v) 4.1kg.cm (at 6.0v)

This is the Futaba s3003 standard servo. This basic servo is used in cars, boats or where standard servos are used. This is the replacement for the following servos, s138, s148, s22, s38, and s12. This servo can produce a high current draw from your batteries. If using ni-mh or lipo batteries, make sure they are capable of delivering sufficient amps. Includes One s3003 standard servo with preinstalled round servo horn futm0031, four brass eyelets, four black rectangular rubber grommets (futm2348), four servo mount screws, one servo wheel 1 3/8 inch (35mm) in diameter, one x shape servo arm 1.5 inch (38mm) across, one star-shaped arm 1 ¼ inch (32mm) across, nylon gears, one year warranty. Specifications: Speed 0.23 sec/60, 4.8 v or .16 sec/60, 6 v / torque: 44 oz in, 4.8 v or 56.8 oz in, 6 v / (3.2 kg-cm 4.8 v or 4.1 kg-cm, 6 v). Size: 1.6 x 0.8 x 1.4 inch (41 x 20 x 36 mm) w/o output shaft. Weight: 1.3oz (37.2g). Connector: “j" type with approximate 5-inch lead. 9/20/95 update jxs 10/29/03 / update jxs 4/13/04 / update mcw 5/19/04, update jxs 10/29/04 from the manufacturer this is the Futaba s3003 standard servo. This basic servo is used in cars, boats or where standard servos are used. This is the replacement for the following servos, s138, s148, s22, s38, and s12. This servo can produce a high current draw from your batteries. If using ni-mh or lipo batteries, make sure they are capable of delivering sufficient amps.
