A2212 1400KV BLDC Motor and 30A ESC Electric Speed Controller

PRODUCT OVERVIEW:

• High quality and high-cost performance.

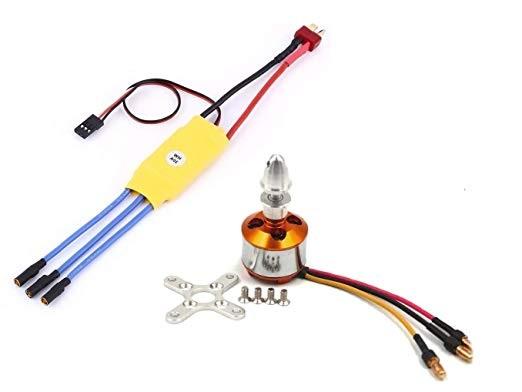

• RC Combo Kit 30A ESC + 1045 Propeller set + Brushless Motor (BLDC)


• 1 x 30A ESC


• Soldered Bullet connectors to motor and ESC for easy connection.


• Suitable for airplanes, aircraft, quad-copters, ESC used has an On-Board BEC.

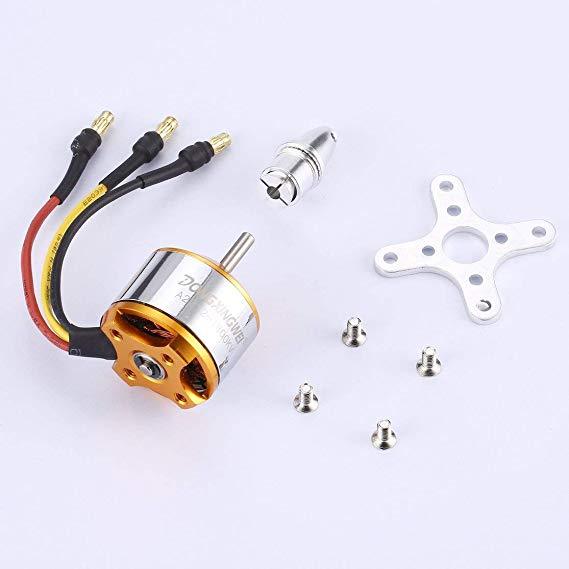

Extremely Powerful RC Brushless motor in small size. Specialized for multi-rotors. To be used directly with propellers. Comes with motor mount and Bullet male connectors.

Good quality robust speed controllers, they will work straight out of the box for model aircraft. Silicon leads and standard Futaba / JR plug connectors.

Counter Rotating Propeller 1045/1045R (CW + CCW) for Multirotor. Compatible with quadcopters, hexacopter and octocopter in various combinations of pusher and puller propeller. Compatible with our 2212 brushless motors with prop adapters. It comes with multiple diameter fixture rings so it can fit most of motors with various prop adapters and shaft diameters.

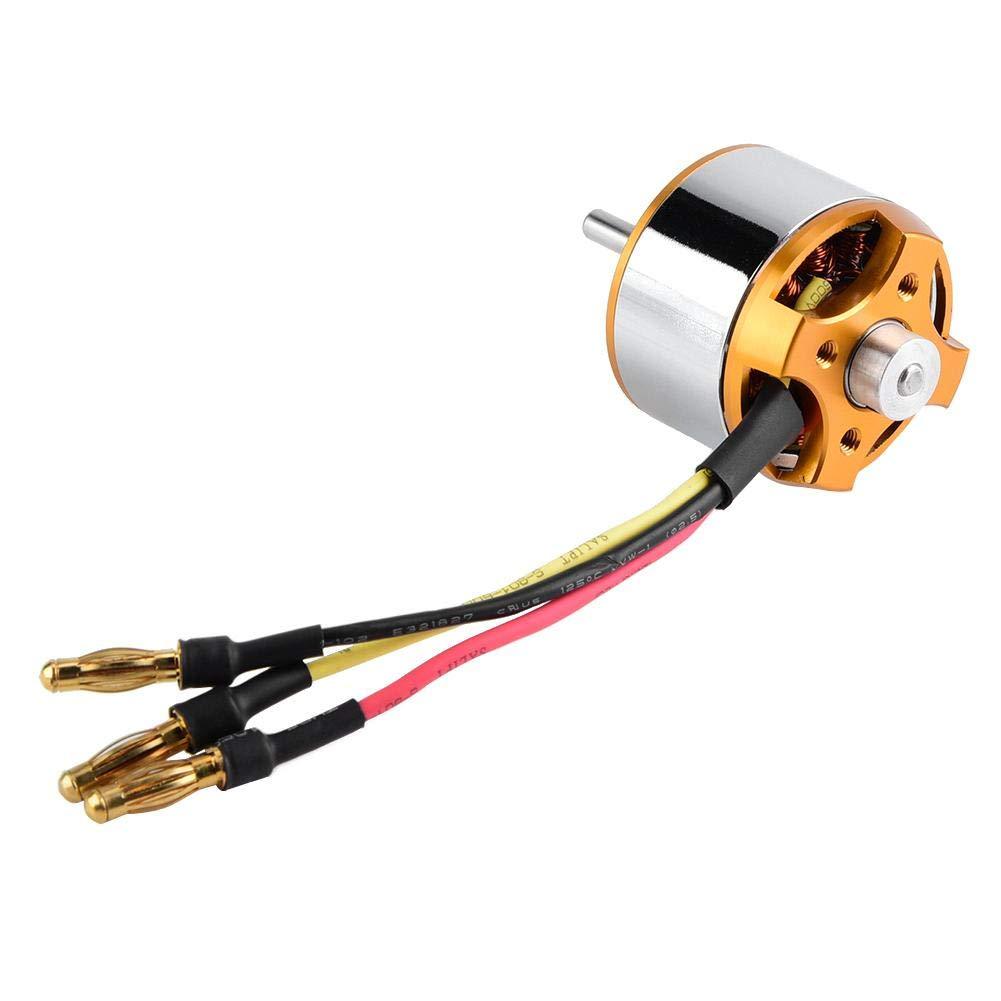

Motor Specifications:

• Model: A2212 10T


• Motor KV (RPM/V): 1400


• Runs on 2-3 Cell Li-Po battery


• ESC Requirement minimum 25A


• Diameter 28.5mm


• Shaft Diameter 3.17mm


• 1400 RPM/V no load speed


• Free Load Current 0.7A at10V


• Maximum Efficiency : 86%


• Weight 52 gm

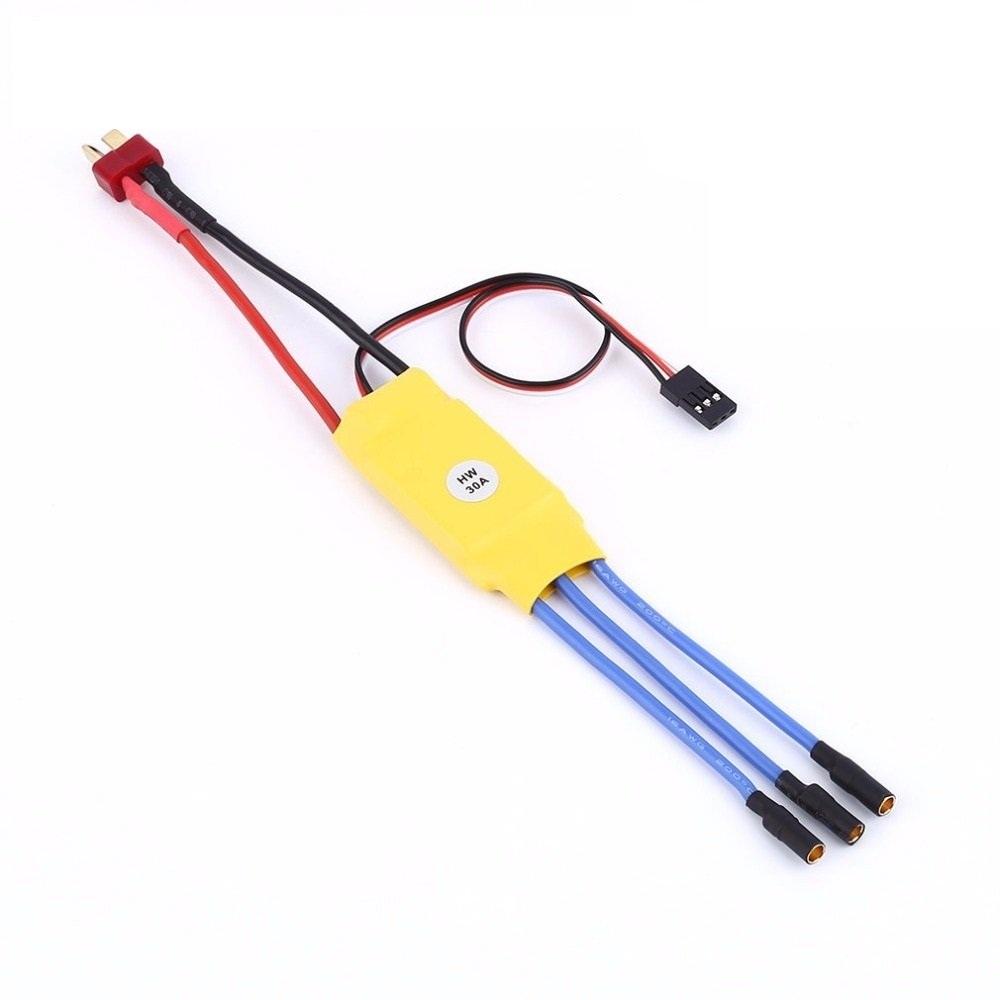

ESC Specifications:

• High rate PWM


• Low resistance


• Sixteen cells Max (with BEC disabled)


• User programmable brake


• Low voltage auto setting based on battery


• Throttle range self-adjusting


• Soft start ramp up


• Auto motor cutoff with reset


• Runs motor in forward or reverse


• Safe power arming program ensures motor will not run accidentally after turn on


• Low torque start


• Auto shut down when signal is lost


• Constant Current: 30A


• BEC 3A


• Input Volt: 6V - 12V


• Max Current: 40A


• Low-Voltage Cutoff: Auto detect and set


• Size: 56mm x 24mm x 8.5mm


• Weight: 26g
