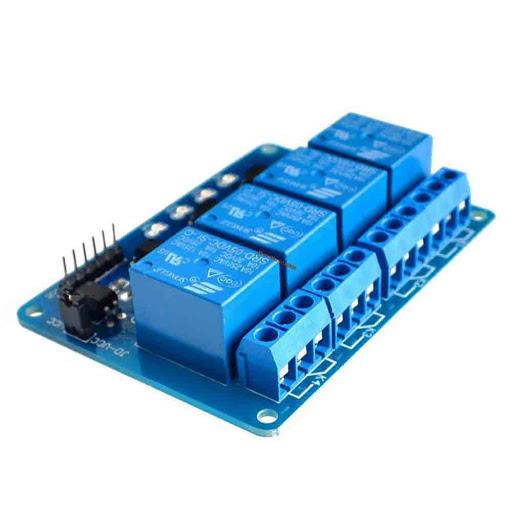

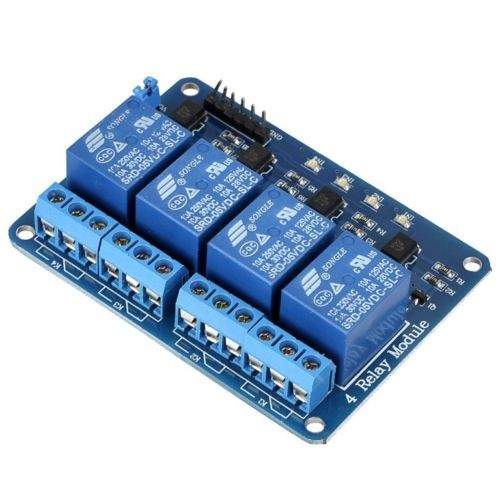

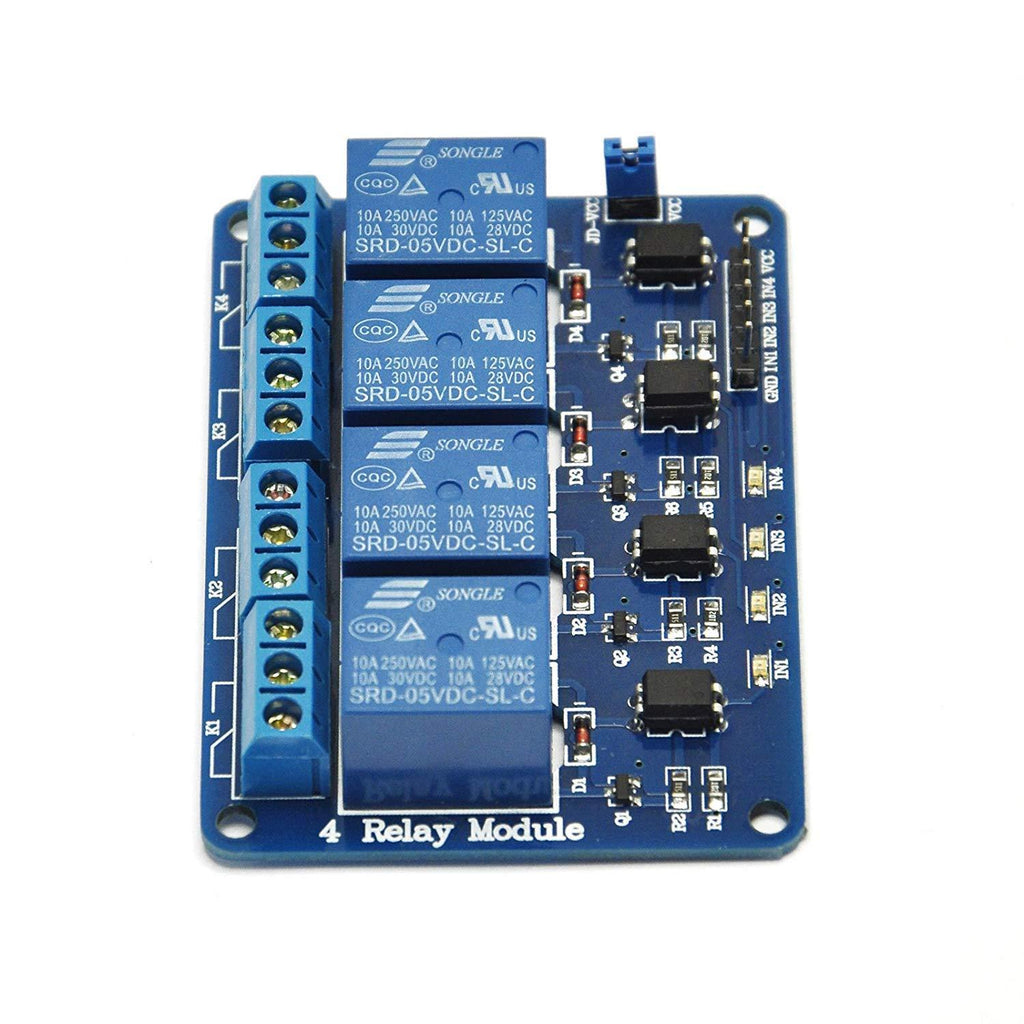

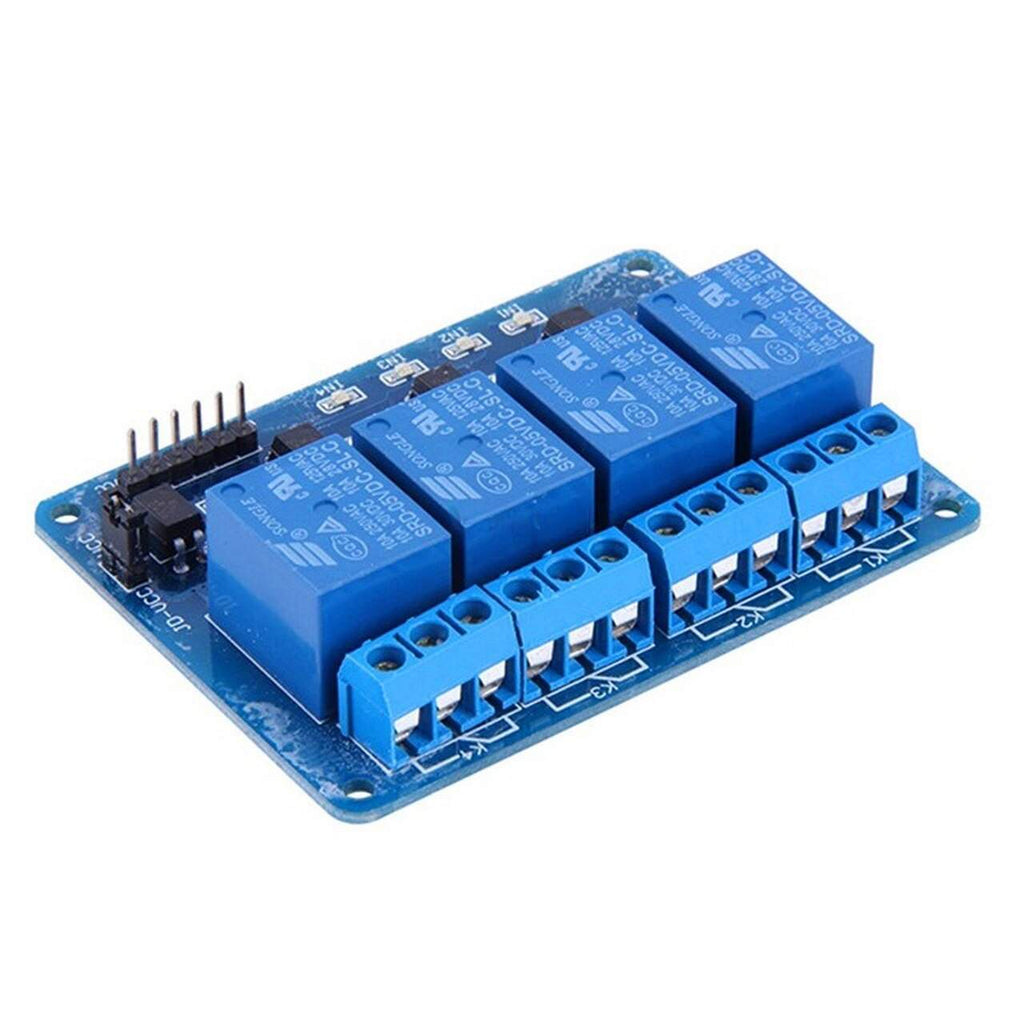

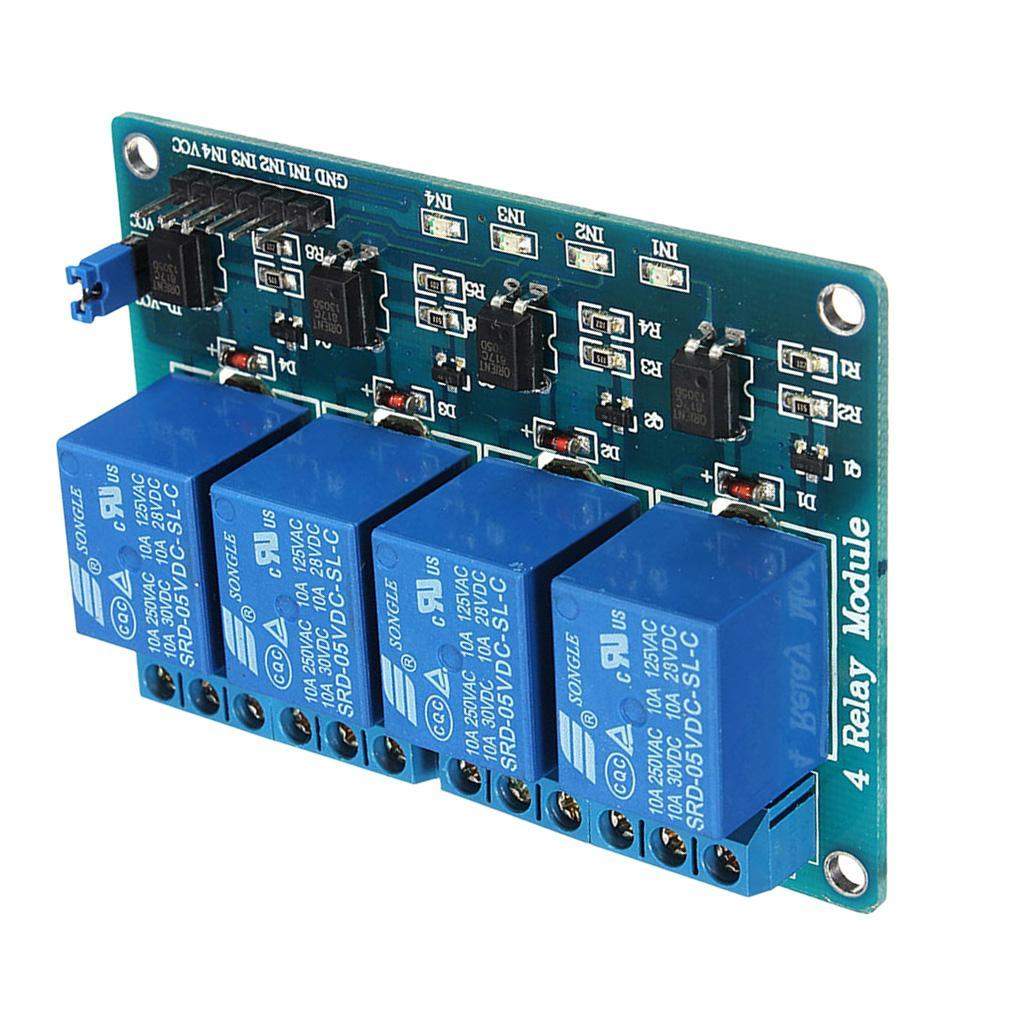

5V 4 Channel Relay Control Board Module With Optocoupler, 4 Way Relay Module for Arduino DSP AVR PIC ARM, Blue

PRODUCT OVERVIEW:

Its a convenient board and used to control high voltage, high current load such as motor, solenoid valves, lamps, and AC load. It is designed to interface with a microcontroller such as Arduino, PIC and etc. The relays terminal (COM, NO, and NC) is being brought out with a screw terminal.

--

DESCRIPTION:-

This is a 5V 4-Channel Relay interface board, be able to control various appliances and other equipment with large current. It can be controlled directly by Microcontroller (for Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

FEATURES:-

• 5V 4-Channel Relay interface board and each one needs 15-20mA Driver Current.

• Equipped with high-current relay, AC250V 10A; DC30V 10A.

• Standard interface that can be controlled directly by microcontroller (for Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

• Indication LED’s for Relay output status.

APPLICATION:-

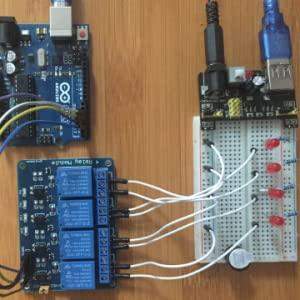

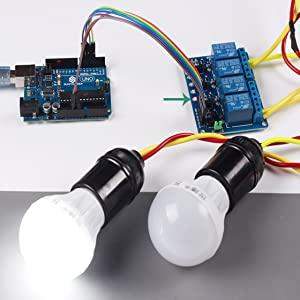

4 Channel Relay Module board is used to interface any Microcontroller with Electrical Appliances/Loads. It can also be used in driving high power motors. 4-channel relay output modules, relay output contacts 250A 10A. Input IN1, IN2, IN3, IN4, the signal line LOW effective.

OVERVIEW:-

• 5V 4-Channel Relay interface board and each one needs 15-20mA Driver Current.

• Equipped with high-current relay, AC250V 10A; DC30V 10A.

• Standard interface that can be controlled directly by microcontroller (for Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

• Indication LED’s for Relay output status.

IN THE BOX

4 Channel Relay Module board by Robotbanao comes included with a 1 x 5V 4 Channel Relay Module.
