A2212 1400KV Brushless DC Motor (4 Pcs) And 30A ESC (Simonk) (4 Pcs) With 1045 Propeller (2 Set)

PRODUCT OVERVIEW:

• The design of the A2212/10T/13T is capable of withstanding competitional conditions.


• Lightweight design makes them suitable for a wide range of Multirotor Frames.


• Comes in compact sizes.


• Offers great performance and value for money.


• This particular combination of motor and ESC with props gives you a smooth throttle response for the best RC experience.


• Suitable for airplanes, aircraft, quadcopters.


• ESC used has an On-Board BEC.


• Faster and Better speed control.


• Suitable for the propeller size: 1045, 1047,1060, 9050

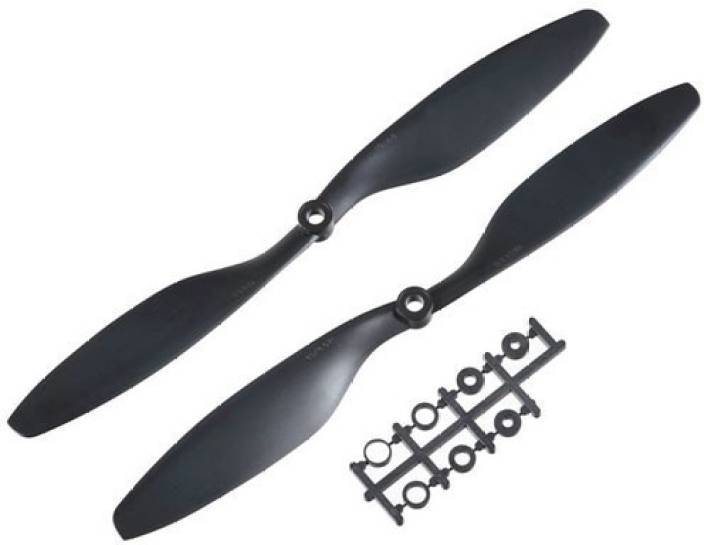

The A2212 10T 13T 1400Kv Brushless Motors for Drone and Simonk 30A ESC is a very popular combination of Brushless DC Motor + Electronic Speed Controller (ESC) for Drones. This combination is coupled with 1045 Propeller Set.

This 1400kv brushless motor is equipped with the solid metal case which makes it reliable and durable. This A2212 10T or 13T Motor comes with the pre-soldered good quality connector for a fast and direct connection between ESC and the motor.

APPLICATION:

• Drones


• Quadcopters


• Multirotor


• RC Airplanes


• UAV

Specification:

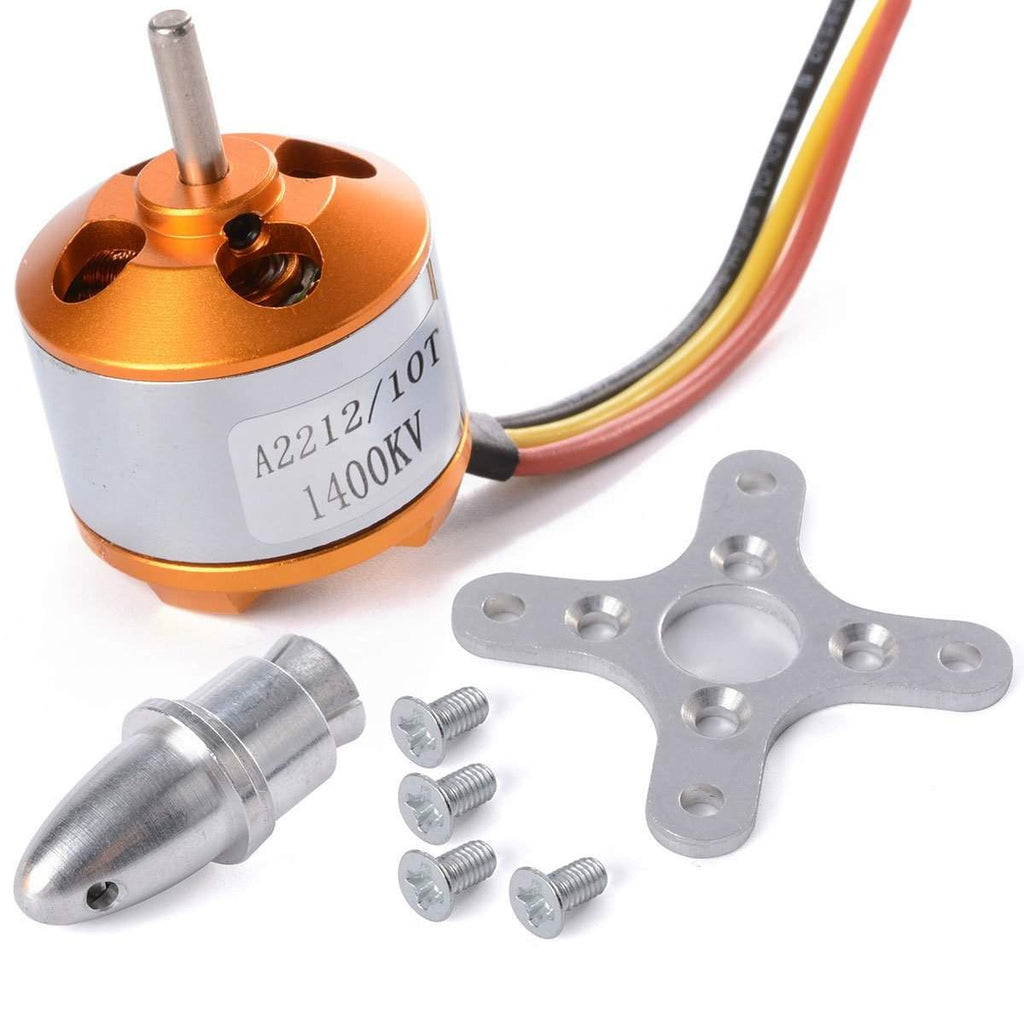

1.       A2212 10T/13T BLDC Motor

• Model: A2212 10T/13T


• Motor KV (RPM/V): 1000


• Maximum Efficiency: 80%


• Current Capacity: 16A/60S


• No-Load Current(A): 0.7A @10V


• Efficiency Current: 6-12A


• Maximum Watts(W): 180


• Internal Resistance(mΩ): 65


• Poles: 14


• Shaft Diameter (mm): 3.17


• Lipo Batteries: 2S-3S


• Length (mm): 27.5


• Width (mm): 26.5


• Weight (gm): 62

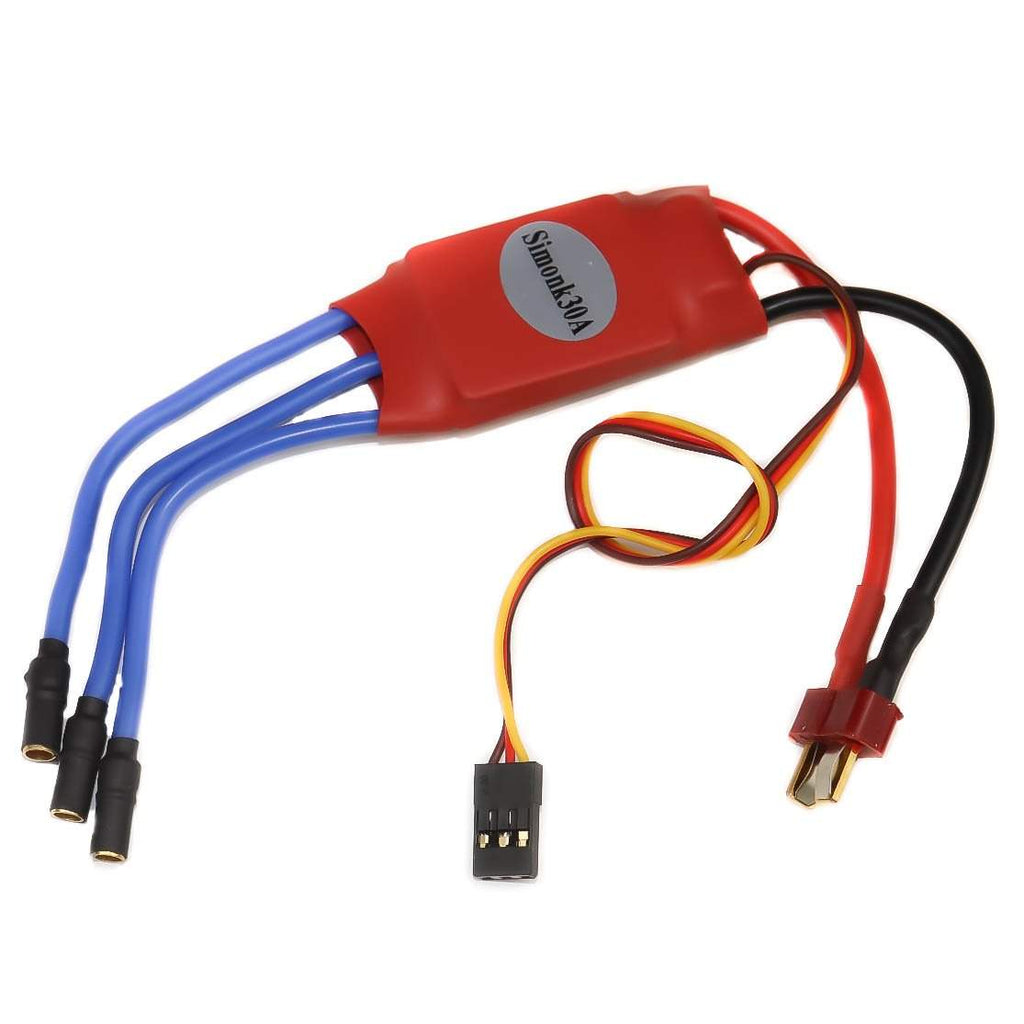

2.       Simonk 30A ESC

• Constant Current: 30A


• Maximum Current: 40A @10S


• BEC: 3A


• Lipo Batteries: 2S-3S

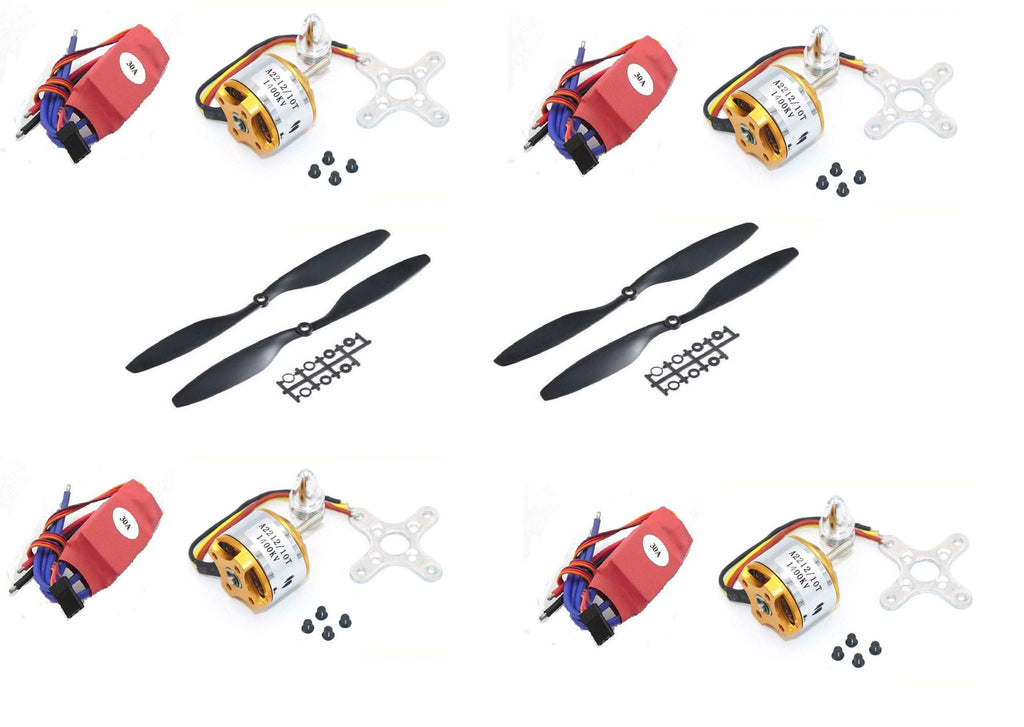

Package Includes For (4 PCS):

• 1 x A2212 10T 13T 1000KV Brushless Motor with Soldered Connector


• 4 x Prop Adapter


• A Motor Holder (X-type) and Set of screws


• 1 x Simonk 30A BLDC ESC
